CFX Card

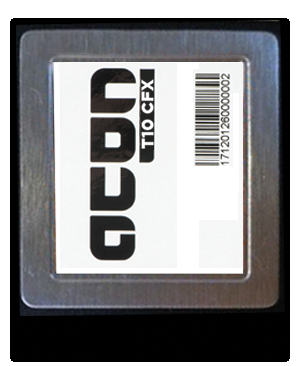

acon CFX Card PCIe T/TX230

acon CFX delivers all the advantages of flash disk technology with PCIe Gen3 x2 interface. The CFX could provide the capacity range from 128GB to 512GB. Moreover, it can reach up to 1600 MB/s read as well as 800 MB/s write high performance. Its lower power consumption makes it an ideal storage choice for high performance embedded platforms.

Model No.	T/TX230
Interface	PCIe Gen. 3x2
Capacity	128GB - 2TB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 1.550MB/s \| SW: 950MB/s
DRAM	No

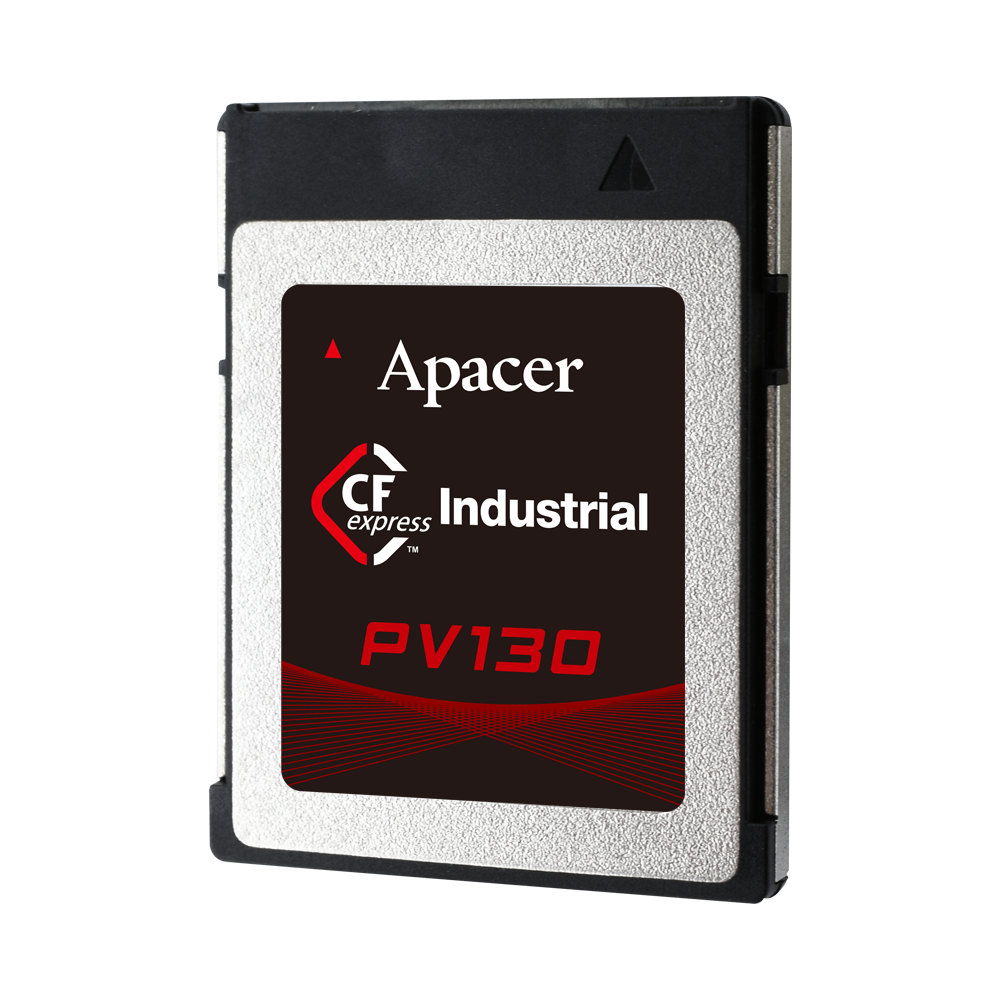

Apacer CFX Card PCIe PV130-CFX

Apacer Industrial CFexpress PV130-CFX is the next generation Solid State Drive (SSD) with compact and removable storage to support larger, faster hosts deployed in a wide range of applications that require outstanding performance.
PV130-CFX provides full compliance with the latest PCIe Gen3 x2 (two-lanes) and NVM Express 1.3 interface specifications which allows the SSD to deliver exceptionally low latency and high performance, up to 1,550 MB/s read and 950 MB/s write. This new standard is designed for a variety of applications ranging from industrial, imaging, high-speed computing to enterprise markets.

Model No.	PV130-CFX
Interface	PCIe Gen. 3x2
Capacity	120GB - 480GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperatur	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 1.550MB/s \| SW: 950MB/s
DRAM	No
