SATA DoM

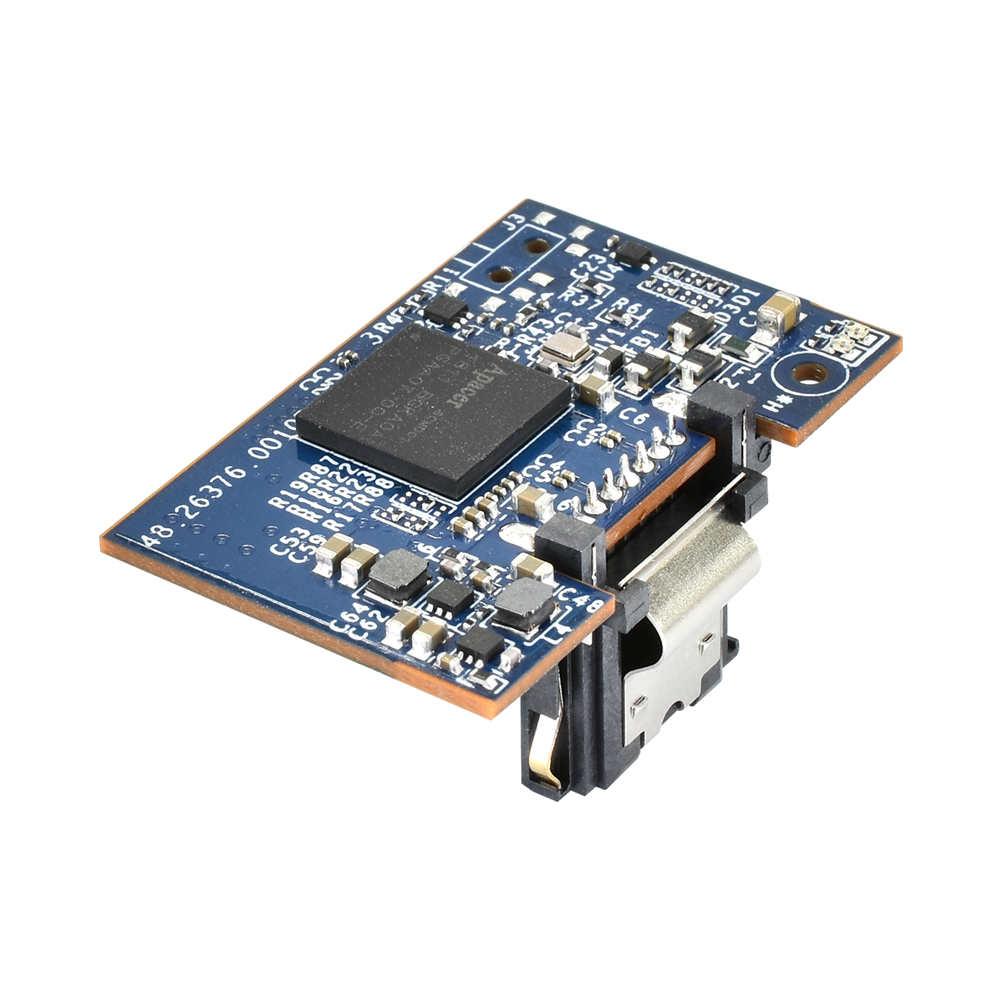

Apacer SATA DoM SH250-7LP2 90D

Apacer SH250-7LP2 90D (SATA Disk Module 7Pin/90 Degree Low Profile 2) is a super-mini industrial SSD module, utilizing 3D NAND for higher capacity up to 40GB and provides more power efficiency than 2D NAND. Designed in SATA 6.0 Gb/s interface, SH250-7LP2 can deliver outstanding performance up to 310MB/s in reading and 305MB/s in writing, highly suitable to serve as operating system boot drive or storage media of important data.

For data efficiency, the internal controlling unit of the product is engineered with a DRAM as a write cache for enhanced random performance and endurance. With Apacer’s SLC-liteX technology, SH250-7LP2 performs with higher number of P/E cycles up to 30,000 times. Besides, SH250-7LP2 features Apacer Multi-PowerPath technology that provides three methods to supply power to the host either via a conventional cable or cable-less design via pin7 or state-of-art 7+2 pin connector, which in turn offers developers maximum flexibility when it comes to board design.

Model No.	SH250-7LP2 90D
Interface	SATA III 6.0Gb/s
Capacity	10GB - 40GB
Flash Type	3D pSLC
Endurance	30.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 310MB/s \| SW: 305MB/s
DRAM	No

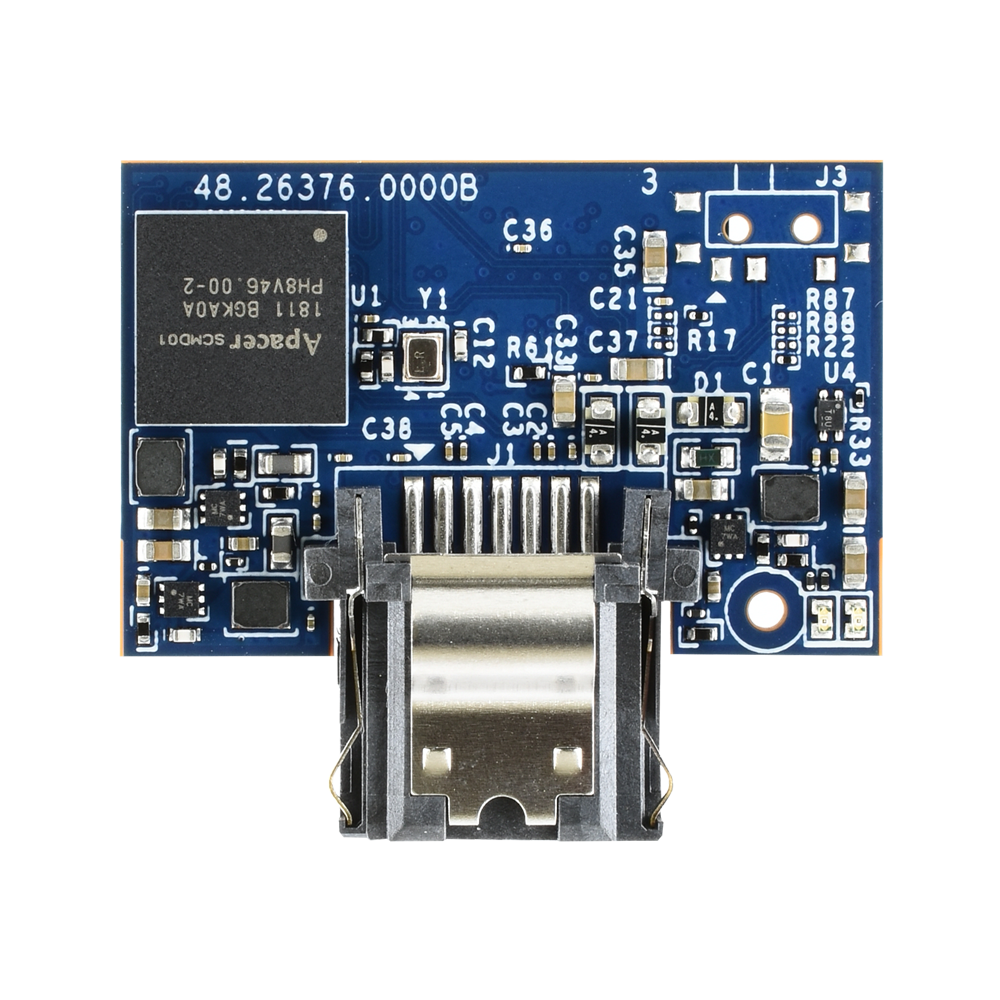

Apacer SATA DoM SH250-7LP2 180D

Apacer SH250-7LP2 180D (SATA Disk Module 7Pin/180 Degree Low Profile 2) is a super-mini industrial SSD module, utilizing 3D NAND for higher capacity up to 80GB and provides more power efficiency than 2D NAND. Designed in SATA 6.0 Gb/s interface, SH250-7LP2 can deliver outstanding performance up to 560MB/s in reading and 510MB/s in writing, highly suitable to serve as operating system boot drive or storage media of important data.

For data efficiency, the internal controlling unit of the product is engineered with a DRAM as a write cache for enhanced random performance and endurance. With Apacer’s SLC-liteX technology, SH250-7LP2 performs with higher number of P/E cycles up to 30,000 times. Besides, SH250-7LP2 features Apacer Multi-PowerPath technology that provides three methods to supply power to the host either via a conventional cable or cable-less design via pin7 or state-of-art 7+2 pin connector, which in turn offers developers maximum flexibility when it comes to board design.

Model No.	SH250-7LP2 180D
Interface	SATA III 6.0Gb/s
Capacity	20GB - 80GB
Flash Type	3D pSLC
Endurance	30.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 560MB/s \| SW: 510MB/s
DRAM	No
