M.2 2280

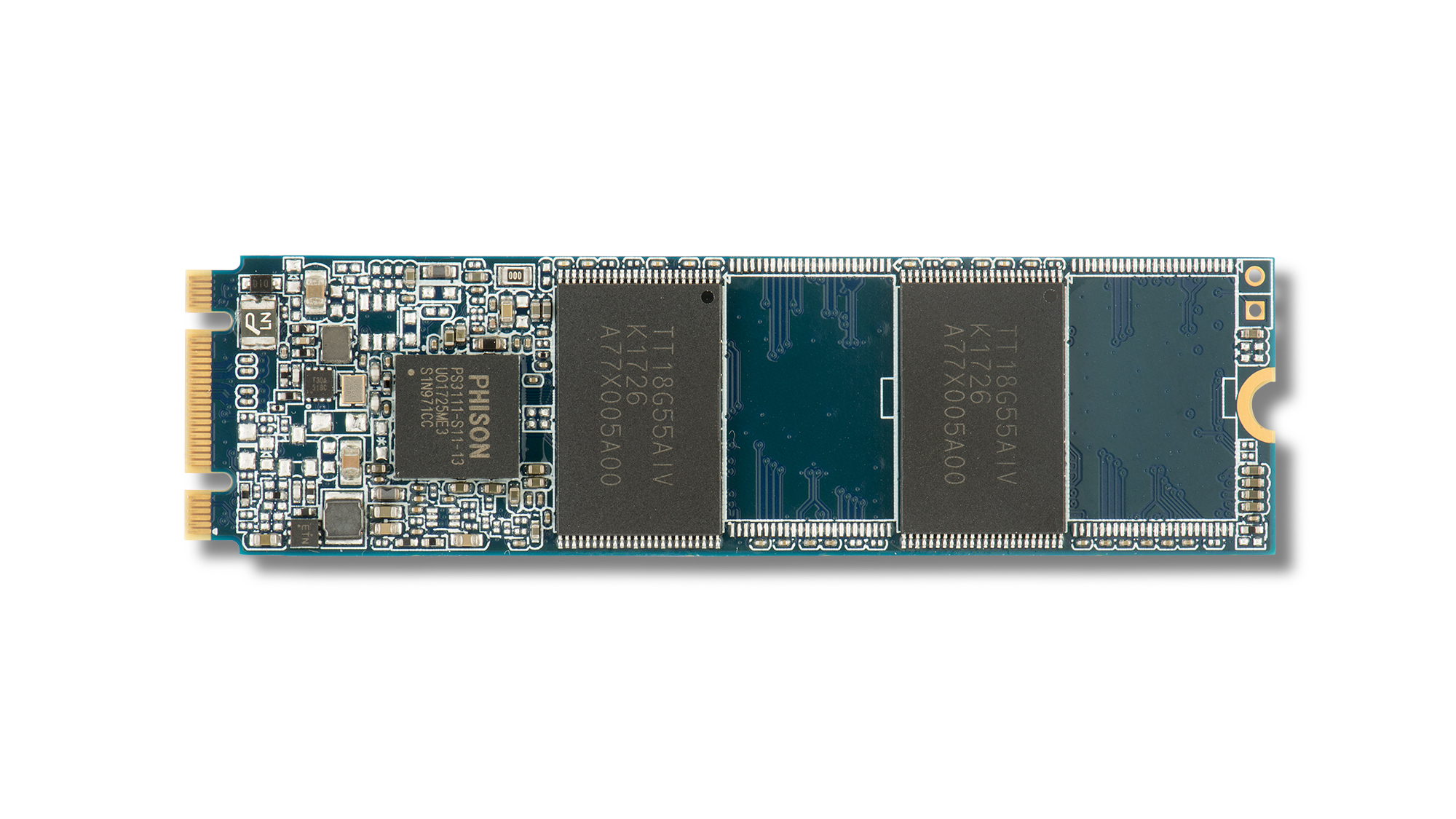

acon M.2 2280 SATA III SSD T/TX421

acon’s M.2 2280 SATA Solid State Disk (SSD) delivers all the advantages of flash disk technology with the Serial ATA I/II/III interface, including being fully compliant with the standard Next Generation Form Factor (NGFF) M.2 2280 form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks. The device is designed based on the M.2 2280 standard. Its capacity could provide, 240GB, 480GB, 960GB, 1920GB. Moreover, it can reach up to 550MB/s read as well as 520MB/s write high performance based on Kioxia BiCS3 TLC NAND flash.

Model No.	T/TX420
Interface	SATA III 6.0 Gb/s
Capacity	240GB - 2TB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 520MB/s
DRAM	Yes

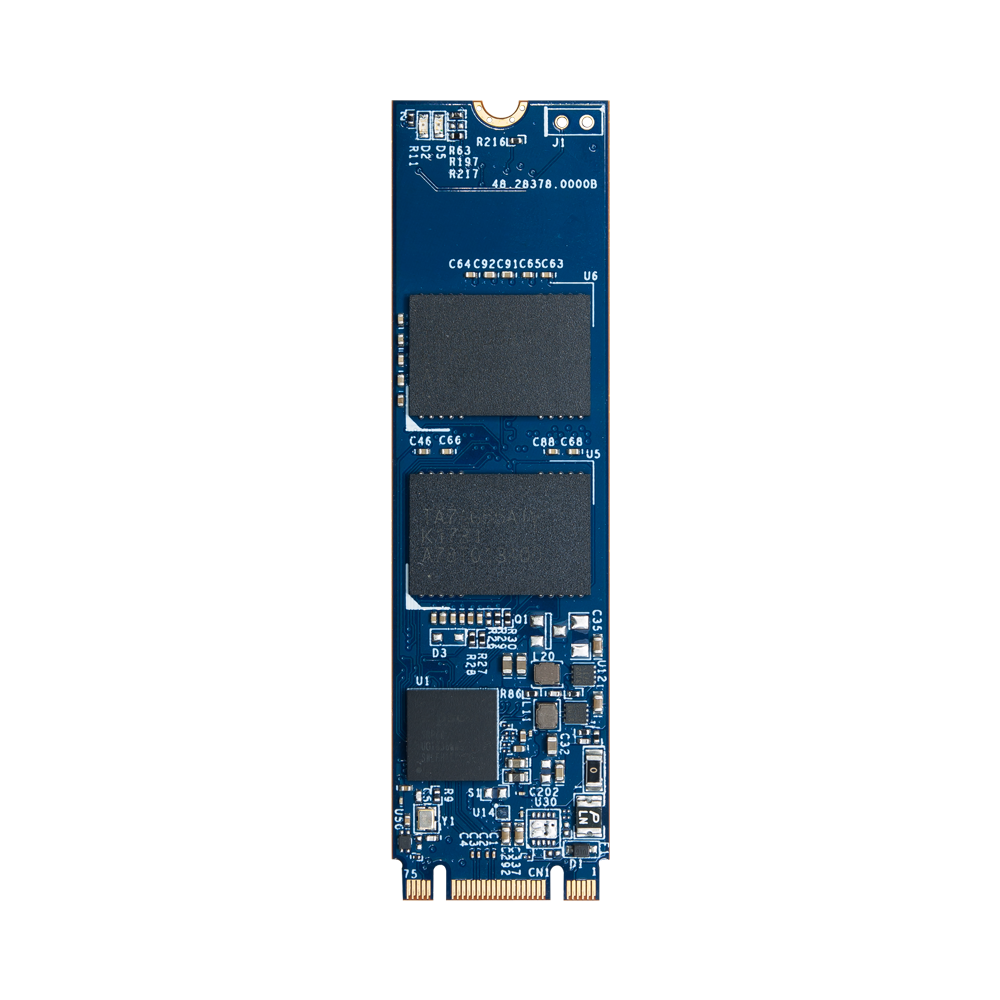

Apacer M.2 2280 SATA III SSD ST170-M280

Apacer’s ST170-M280 (M.2 2280) utilizes 3D NAND for higher capacity up to 960GB and provides higher power efficiency than 2D NAND, with the aim of becoming more suitable for mobile and compact computers with standard width at only 22.00 mm. ST170-M280 appears in M.2 2280 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems. Regarding reliability, ST170-M280 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip.

Model No.	ST170-M280
Interface	SATA III 6.0 Gb/s
Capacity	30GB - 960GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 560MB/s \| SW: 515MB/s
DRAM	No
