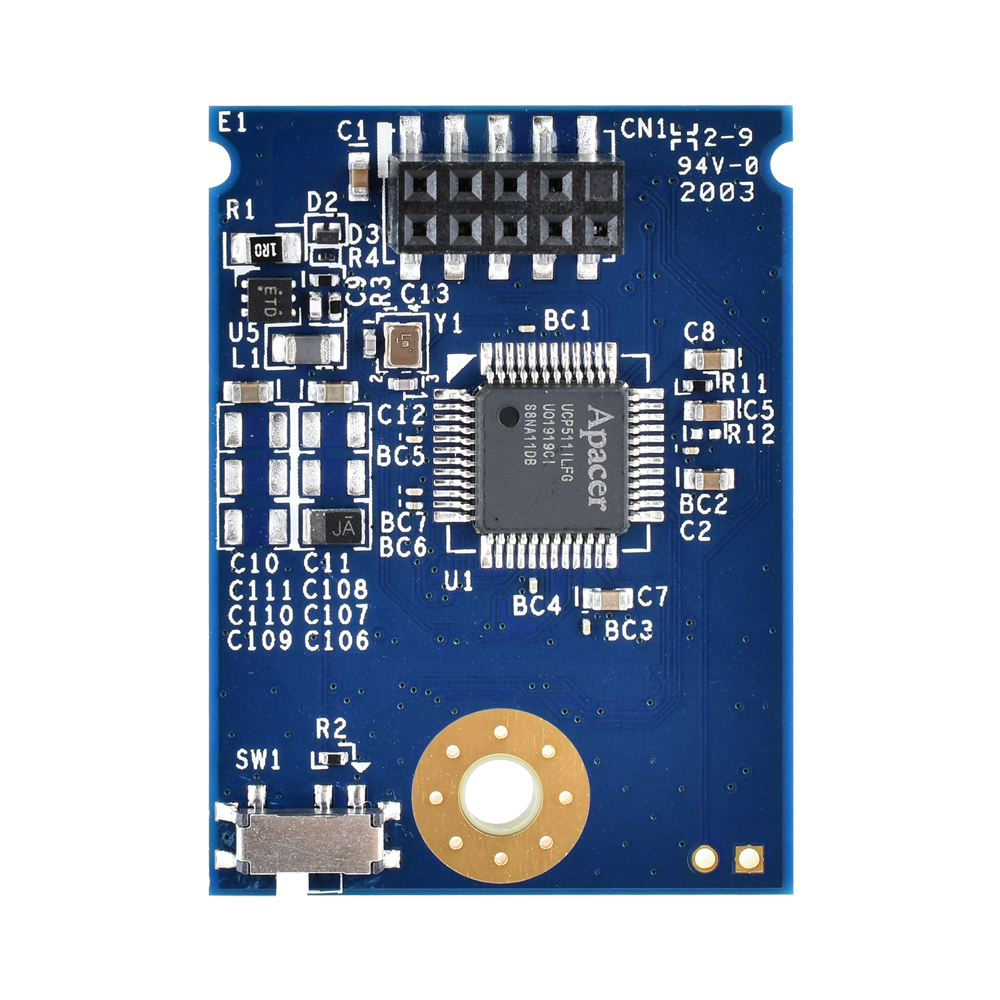

Apacer USB DoM UV110-UFM2

Apacer’s UV110-UFM2 is a high performance, embedded solid state drive (SSD) designed to replace a conventional IDE hard disk drive. As an embedded flash storage, UV110-UFM2 is compliant with USB 2.0 and backward compliable with USB 1.1. Utilizing 3D NAND, UV110-UFM2 offers capacity up to 128 GB and provides more power efficiency than 2D NAND, and can be plugged into a standard Embedded USB connector commonly found in desktops, portable PC systems and industrial PC systems.

Regarding reliability, UV110-UFM2 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. This product is well suited for embedded flash storage applications offering new and expanded functionality as well as more cost-effective designs, better performance and increased reliability.

Model No.
UV110-UFM2
Interface
USB 2.0
Capacity
16GB - 128GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 40MB/s | SW: 33MB/s
DRAM
No

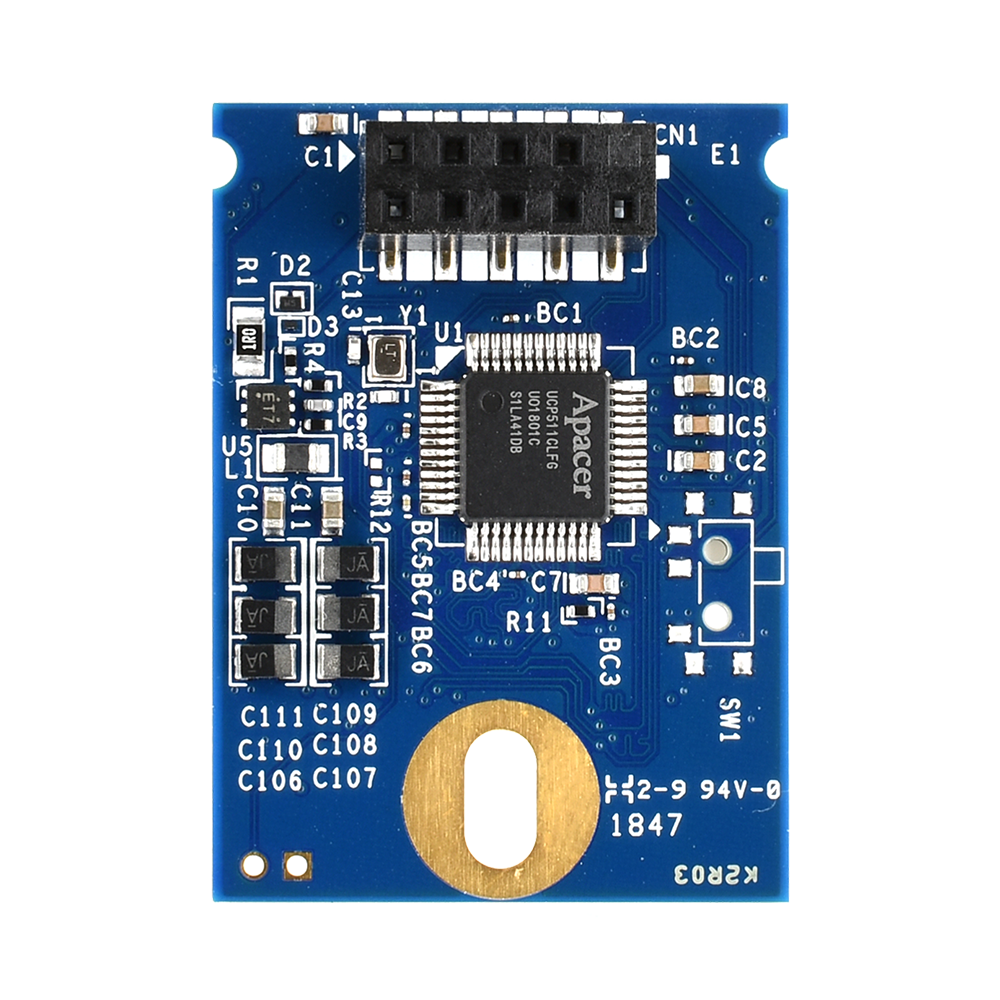

Apacer USB DoM UV110-UFM1

Apacer’s UV110-UFM1 is a high performance, embedded solid state drive (SSD) designed to replace a conventional IDE hard disk drive. Utilizing 3D NAND, UV110-UFM1 offers capacity up to 128 GB and provides more power efficiency than 2D NAND, and can be plugged into a standard Embedded USB connector commonly found in desktops, portable PC systems and industrial PC systems.

Regarding reliability, UV110-UFM1 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. This product is well suited for embedded flash storage applications offering new and expanded functionality as well as more cost-effective designs, better performance and increased reliability.

Model No.
UV110-UFM1
Interface
USB 2.0
Capacity
16GB - 128GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 40MB/s | SW: 33MB/s
DRAM
No
