CF CARDS

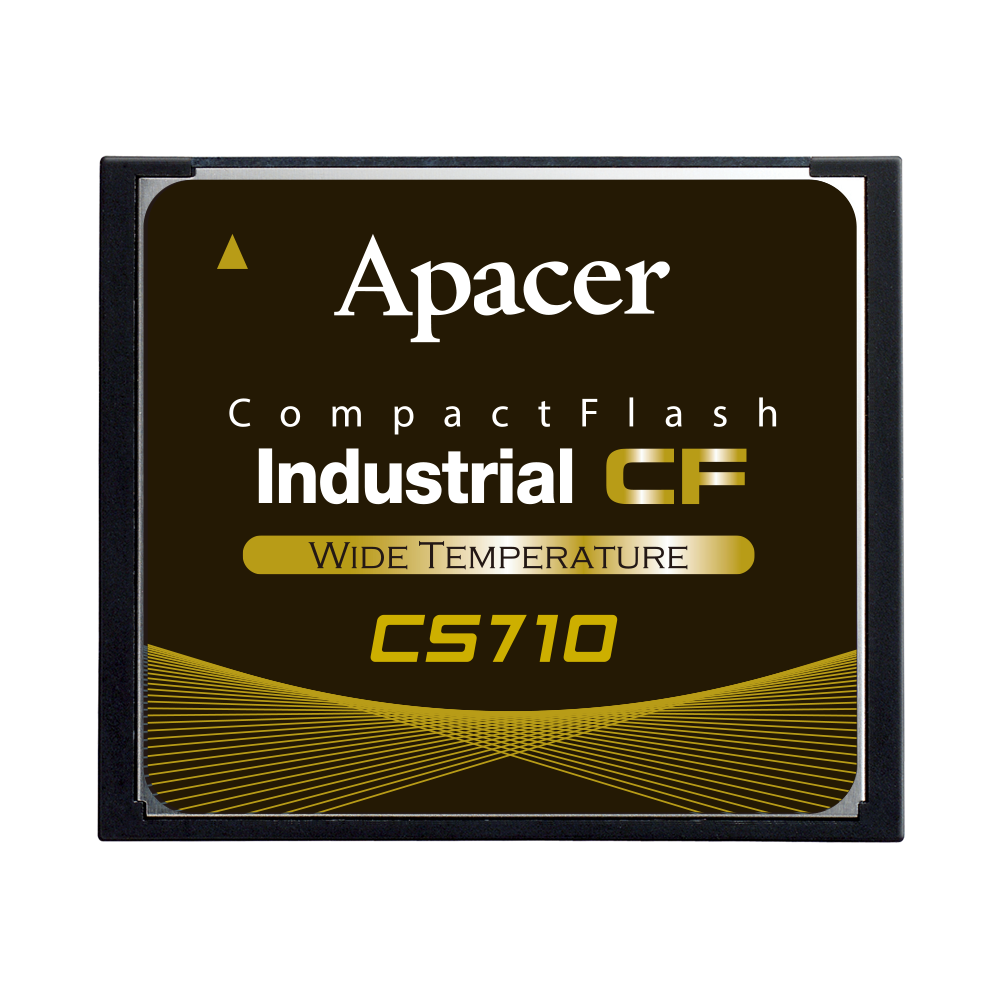

Apacer CF Card CS710-CF

Apacer industrial CS710-CF card is compliant with the CF 6.1 standard compatible specifications.
Apacer adopts the standard 50-pin connector and SLC chip with higher capacity for the card. It is available in capacities from 128MB to 64GB. The data transfer mode is up to PIO Mode 6, Multiword DMA Mode 4, Ultra DMA Mode 6, with the sequential read/write speed reaching as fast as 55/55 MB/sec.
To help data stay correct, this CS710-CFmemory card also supports 96-bit ECC function, wear-leveling function,S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) and supply voltage power-down detection for full power-down robustness,thereby substantially enhancing product reliability.

Model No.	CS710-CF
Interface	PATA
Capacity	128MB - 64GB
Flash Type	SLC
Endurance	60.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 55MB/s \| SW: 55MB/s
DRAM	No

Apacer CF Card CF6

Apacer industrial CF6 card is compliant with the CFA 6.0 specifications. Apacer adopts the standard 50-pin connector and SLC chip featuring industry-level stability for the card. It is available in capacities from 512MB to 64GB. The data transfer mode is up to PIO-6, Multi-Word DMA-4 and Ultra DMA-7, with the sequential read/write speed reaching as fast as 110/80 MB/sec. To help data stay correct, this CF6 memory card also supports 72-bit ECC function, wear-leveling function and S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology), thereby substantially enhancing product reliability.
*The actual available memory on the device is less than what is listed on the package. This is due to small discrepancies in file formats and algorithms used by various operating systems. In addition, a portion of memory space is reserved for system files and data sectors for better performance.

Model No.	CF6
Interface	PATA
Capacity	512MB - 64GB
Flash Type	SLC
Endurance	60.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 110MB/s \| SW: 80MB/s
DRAM	No

Cactus CF Card 303 Series

The Cactus Technologies 303 Series Industrial Grade Compact Flash Memory Card is a SLC NAND based solid-state flash memory device that complies with the CompactFlash Association ATA standard in the CF Type I form factor. It is available in capacities from 128MBytes to 32GBytes and intended for OEM applications needing a high endurance part with very good performance or requiring the optional full extended temperature range of -40C to +85C. For low power applications, a 303 Series Compact Flash can be configured to have the same power as the 203 Series.
The 303 Series Compact Flash comes with full BOM Control, Long Life Cycles and is built with Stringent Quality Processes. As with our other Industrial Grade products, Cactus Technologies incorporates Industrial Grade ECC, Wear Leveling, Write Abort Protection Circuitry and Defect Management into the 303 Series CF, making it the most reliable device available.

Model No.	KC32GF-303
Interface	PATA
Capacity	128MB - 16GB
Flash Type	SLC
Endurance	60.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 35MB/s \| SW: 20MB/s
DRAM	No

Cactus CF Card 603 Series

The Cactus Technologies 603 Series Industrial Grade Compact Flash Memory Card is a SLC NAND based solid-state flash memory device that complies with the CompactFlash Association ATA standard in the CF Type I form factor. It is available in capacities from 512MB to 64GBytes and intended for OEM applications needing a high endurance part with the highest performance or requiring the optional full extended temperature range of -40C to +85C.
The 503 Series Compact Flash comes with full BOM Control, Long Life Cycles and is built with Stringent Quality Processes. As with our other Industrial Grade products, Cactus Technologies incorporates Industrial Grade ECC, Wear Leveling, Write Abort Protection Circuitry and Defect Management into the 503 Series CF, making it the most reliable device available.

Model No.	603 Series
Interface	PATA
Capacity	512MB - 64GB
Flash Type	SLC
Endurance	60.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 50MB/s \| SW: 30MB/s
DRAM	No
