M.2 2280

acon M.2 2280 SATA III SSD L/LX430

acon M.2 2280 delivers all the advantages of flash disk technology with the Serial ATA I/II/III Interface Format and is fully compliant with the standard Next Generation Form Factor (NGFF) called M.2 Card, which is generated by Intel. The M.2 2280 is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 512GB. Moreover, it can reach up to 550MB/s read as well as 495MB/s write high performance based on Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0). The power consumption of the M.2 2280 is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.	L/LX430
Interface	SATA III 6Gb/s
Capacity	16GB - 512GB
Flash Type	3D pSLC
Endurance	30.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 550MB/s \| SW: 495MB/s
DRAM	No

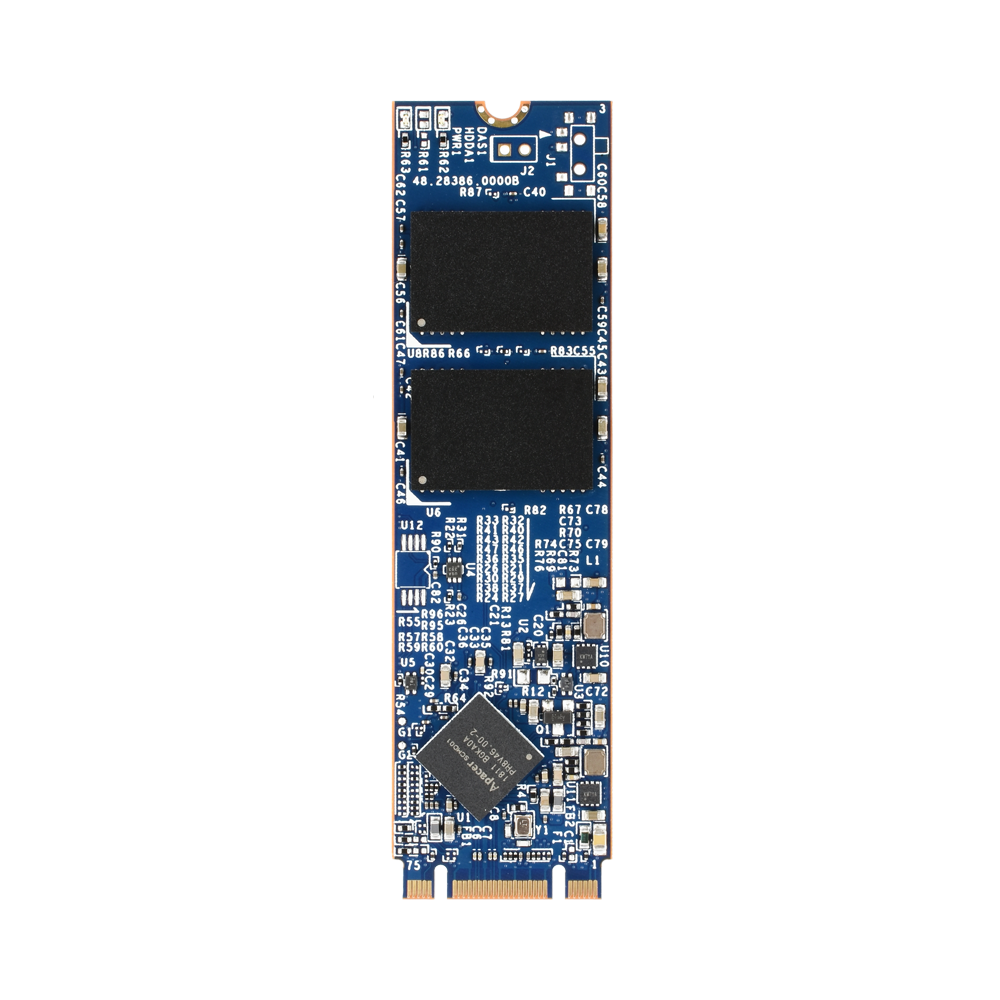

Apacer M.2 2280 SATA III SSD SH250-M280

Apacer’s SH250-M280, utilizing 3D NAND for higher capacity up to 640GB and providing more power efficiency than 2D NAND, is the next generation Solid State Drive (SSD) with compact and high-speed storage and great performance. Designed in SATA 6 Gb/s interface, SH250-M280 provides full compliance with the latest SATA Revision 3.2 interface specifications and delivers exceptional read/write speed, making it the leading add-in storage solution for future host computing systems.

SH250-M280 is built with a powerful SATA controller that supports on-the-module ECC as well as efficient wear leveling scheme and implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. With Apacer’s SLC-liteX technology, SH250-M280 performs with higher number of P/E cycles up to 100,000 times. Furthermore, SH250-M280 is equipped with a built-in thermal sensor to monitor the temperature of the SSD via S.M.A.R.T commands to prevent overheating. Operating under 6 Gb/s interface, SH250-M280 is provided with Apacer latest S.M.A.R.T. that is primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analysis. For highly-intensive applications, End-to-End Data Protection ensures that data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers.

Security-wise, Advanced Encryption Standard (AES) ensures data security and provides users with peace of mind knowing their data is safeguarded at all times. SH250-M280 also adopts the latest page mapping file translation layer and comes with various implementations including power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, DataDefender™ and SMART Read Refresh™. With exceptional performance, trustable reliability and enhanced data protection, SH250-M280 is definitely the ideal storage or cache solution for a variety of applications ranging from industrial, imaging, computing to enterprise markets.

Model No.	SH250-M280
Interface	SATA III 6Gb/s
Capacity	10GB - 320GB
Flash Type	3D pSLC
Endurance	100.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 560MB/s \| SW: 510MB/s
DRAM	No
