CFAST

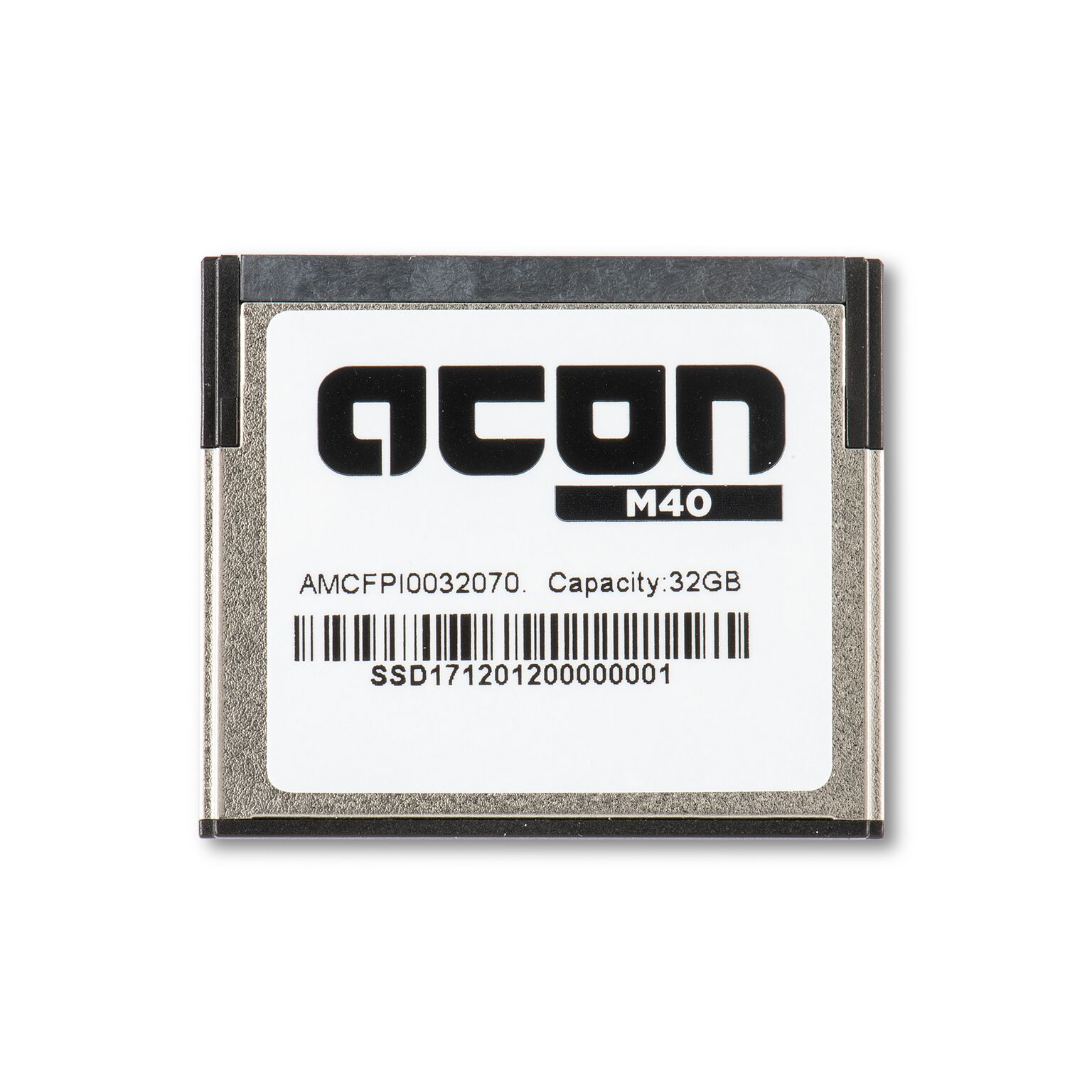

acon CFAST Card SATA III M/MX410

acon’s M-MX41 CFastTM delivers all the advantages of Flash Disk technology with the Serial ATA III interface and is fully compliant with the standard CFastTMform factor. Given the features of the low power consumption, small form factor, and high shock-resistance, CFastTM is an attractive solution to replace the conventional [PATA-interfaced] CompactFlash card in industrial applications or markets where performance is a major concern.
CFastTM, consisting of a SATA-based 7-pin standard interface for data segment and 17-pin for power and controller segment, is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal.

Model No.	M/MX410
Interface	SATA III 6.0 Gb/s
Capacity	8GB - 256GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 555MB/s \| SW: 465MB/s
DRAM	No

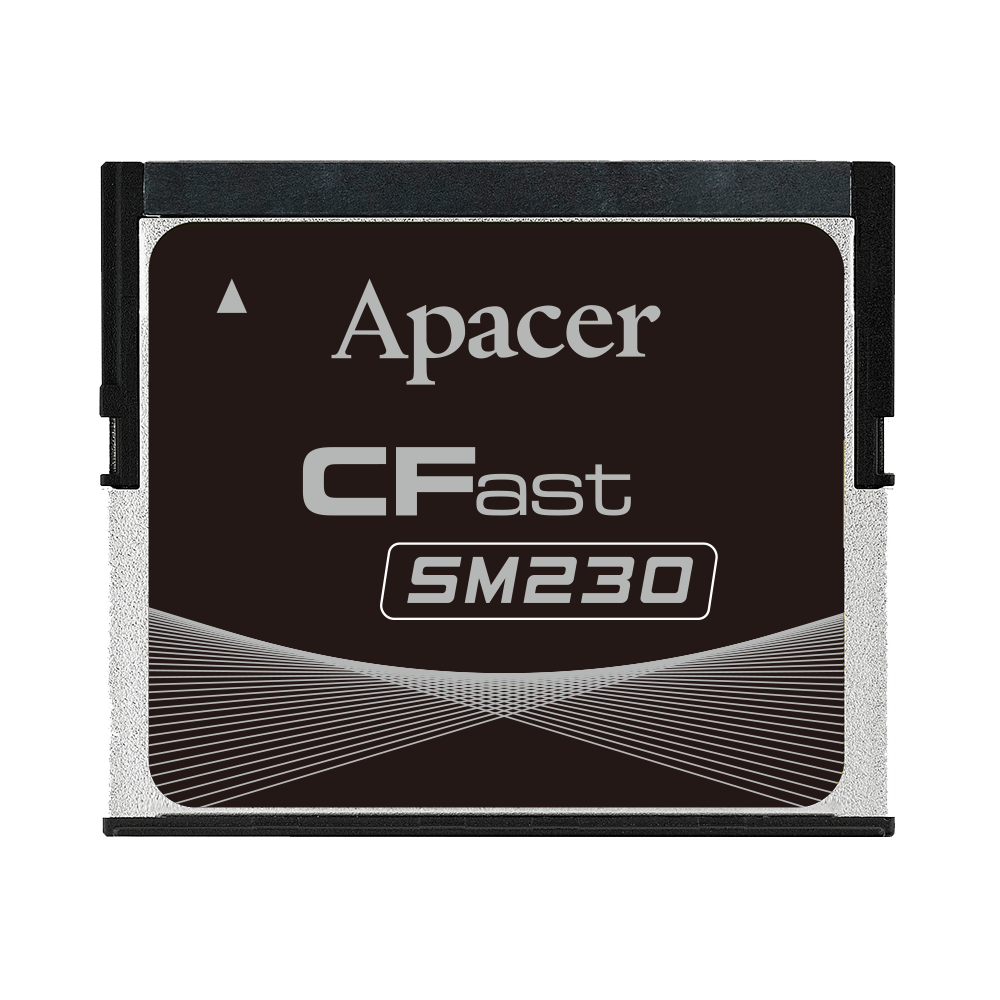

Apacer CFAST Card SATA III SM230

Apacer SM230-CFast 2.0 is the latest enhancement of conventional CFast form factor that delivers various technological advantages. This new flash memory card comes with SATA 6.0 Gbps interface for higher performance and consists of SATA-based 7-pin signal segment and 17-pin for power and control purposes. Designed without DRAM on the internal controlling unit, SM230-CFast ensures data integrity by preventing data loss during a sudden power outage.

Model No.	SM230
Interface	SATA III 6.0 Gb/s
Capacity	8GB - 256GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 560MB/s \| SW: 465MB/s
DRAM	No

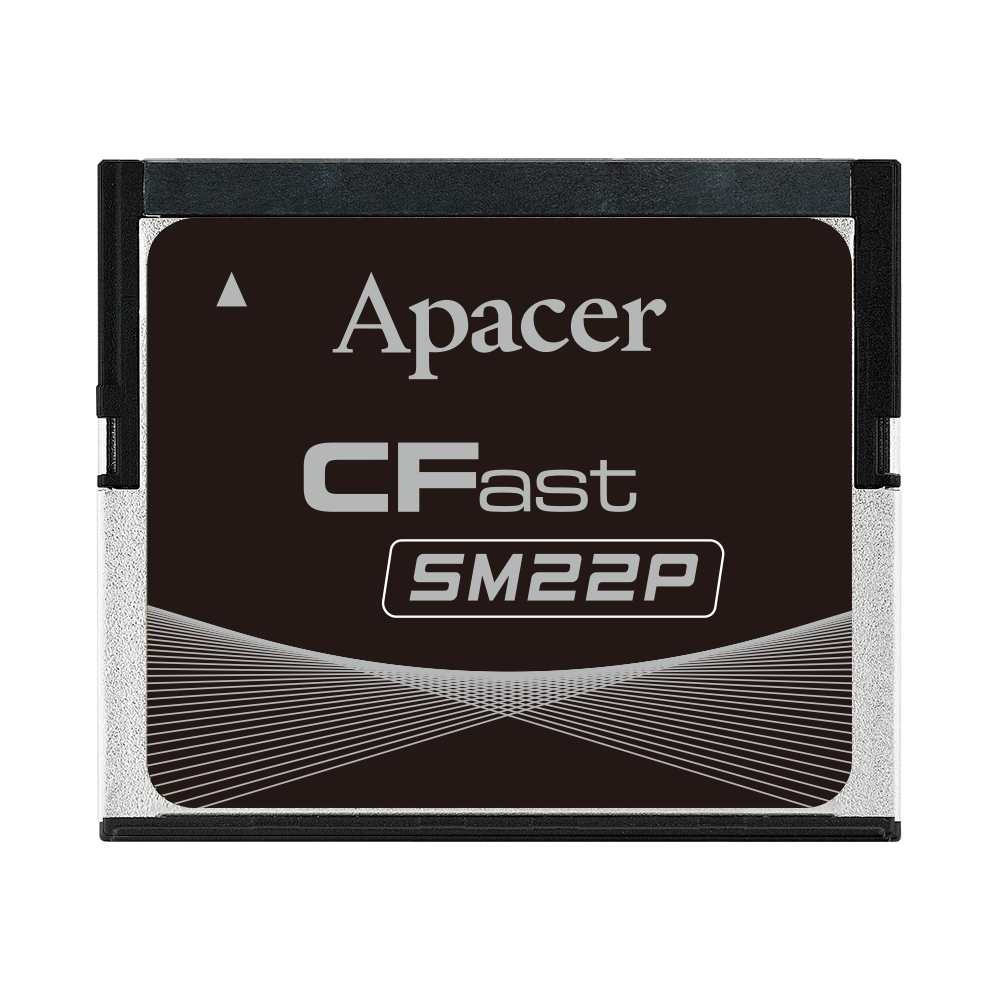

Apacer CFAST Card SATA III SM22P

Featuring CorePower technology, Apacer SM22P-CFast has been proved capable of protecting data from sudden power loss after conducting comprehensive testing. With firmware routines and the design of intelligent hardware architecture, SM22P-CFast ensures that all data can be stored on the NAND flash in the event of power outage. CFast™ is a crossover between the CompactFlash™ (CF) card form factor and the Serial ATA (SATA) interface. Therefore, it can replace both roles of HDDs and CompactFlash™ cards in applications requiring small form factors and harsh environmental conditions. By implementing a backup power supply that lengthens the emergent hold-on time for the controller to move all the cached data into NAND flash, the internal controlling unit of the SM22P-CFast 2.0 is engineered with DRAM for enhanced random performance without any concern over data integrity

Model No.	SM22P
Interface	SATA III 6.0 Gb/s
Capacity	8GB - 128GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 475MB/s \| SW: 85MB/s
DRAM	Yes

Cactus CFAST Card SATA III Series 240

Cactus Technologies Commercial Grade CFast are reliable, cost effective flash storage devices, based on MLC NAND. They are intended for applications which demand very high performance in a rugged small foot print form factor qualified and guaranteed to MIL-810 Standard shock and vibration.

Model No.	KC128GF-240S
Interface	SATA III 6.0 Gb/s
Capacity	8GB - 128GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 330MB/s
DRAM	No
