M.2 2280

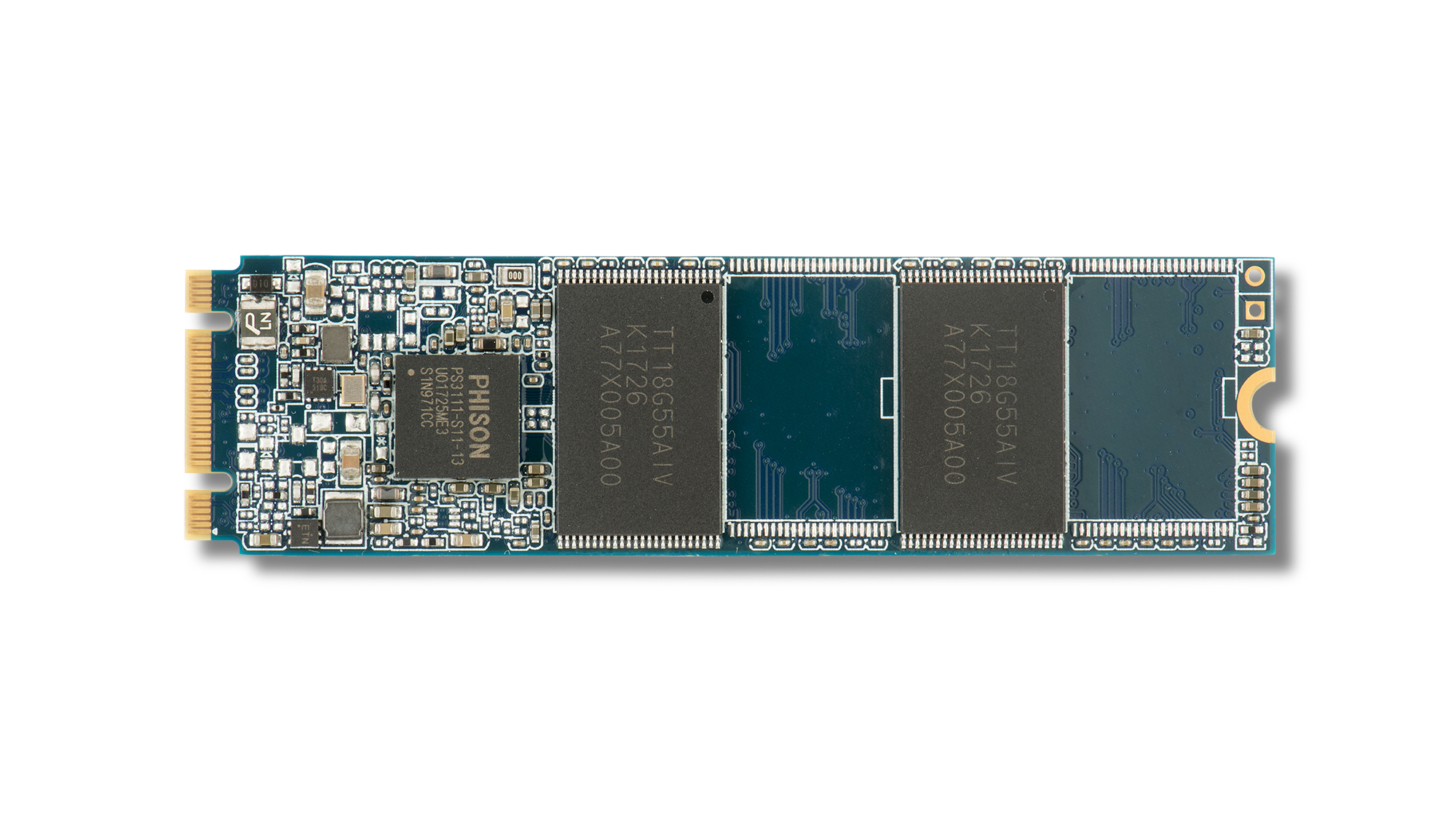

acon M.2 2280 SATA III SSD T/TX430

acon’s M.2 2280 delivers all the advantages of flash disk technology with the Serial ATA I/II/III Interface and is fully compliant with the standard Next Generation Form Factor (NGFF) called M.2 Card Format, which is generated by Intel. The M.2 2280 is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 2TB. Moreover, it can reach up to 550MB/s read as well as 500MB/s write high performance based on Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0). The power consumption of the M.2 2280 is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.	T/TX430
Interface	SATA III 6.0 Gb/s
Capacity	64GB - 2TB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 500MB/s
DRAM	No

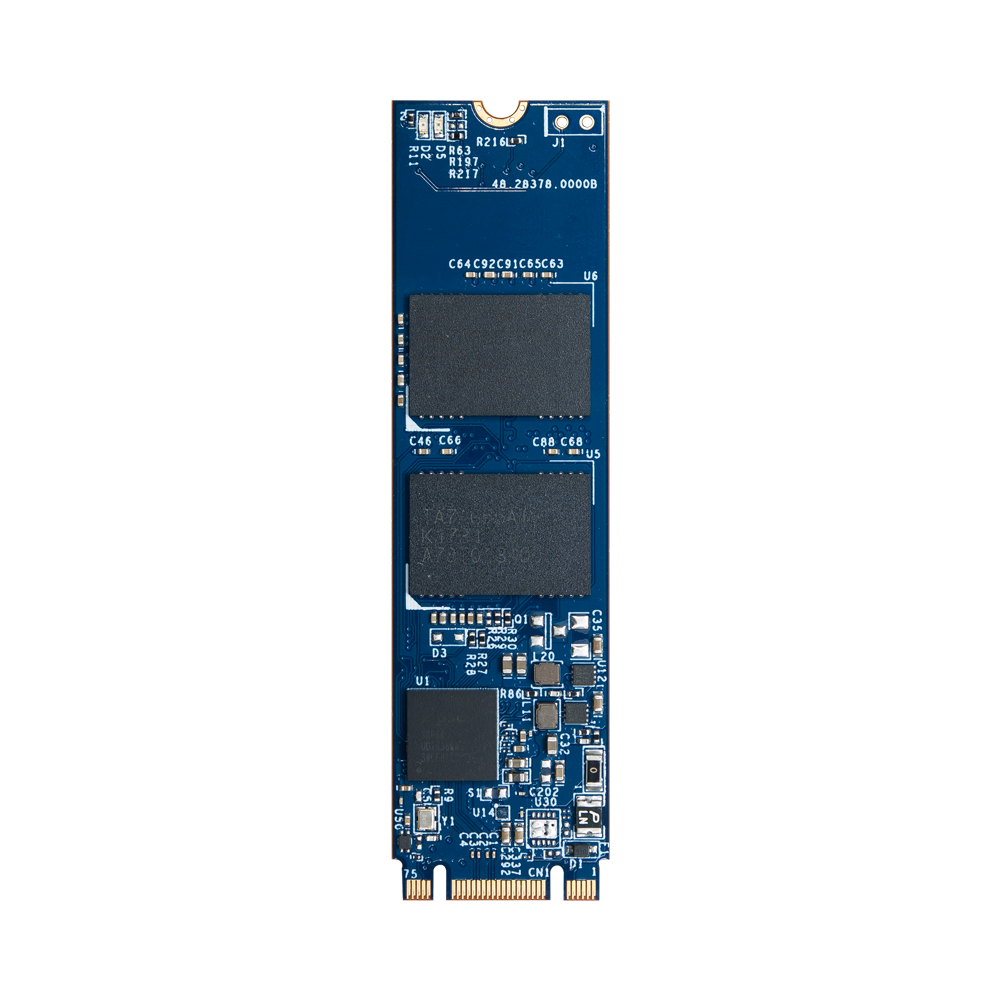

Apacer M.2 2280 SATA III SSD SV250-M280

Apacer’s SV250-M280, utilizing 3D NAND for higher capacity up to 1920GB and providing more power efficiency than 2D NAND, is the next generation Solid State Drive (SSD) with compact and high-speed storage. Designed in SATA 6 Gb/s interface, SV250-M280 provides full compliance with the latest SATA Revision 3.2 interface specifications and delivers exceptional performance up to 560/470 MB/s and 52,000/68,000 in sequential and IOPS read/write, making it the leading add-in storage solution for future host computing systems.

Regarding reliability, SV250-M280 is built with a powerful SATA controller that supports on-the-module ECC as well as efficient wear leveling scheme and implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. Furthermore, SV250-M280 is equipped with a built-in thermal sensor to monitor the temperature of the SSD via S.M.A.R.T commands to prevent overheating. Operating under 6 Gb/s interface, SV250-M280 is provided with Apacer latest S.M.A.R.T. that is primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analysis. For highly-intensive applications, End-to-End Data Protection ensures that data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers.

Security-wise, Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal (optional) ensure data security and provide users with peace of mind knowing their data is safeguarded against unauthorized use at all times. SV250-M280 also adopts the latest page mapping file translation layer and comes with various implementations including power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, Hyper Cache technology, over-provisioning, DataDefender™, DataRAID™ and SMART Read Refresh™. With exceptional performance, trustable reliability and enhanced data protection, SV250-M280 is definitely the ideal storage or cache solution for a variety of applications ranging from industrial, imaging, computing to enterprise markets.

Model No.	SV250-M280
Interface	SATA III 6.0 Gb/s
Capacity	120GB - 1920GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 560MB/s \| SW: 470MB/s
DRAM	No

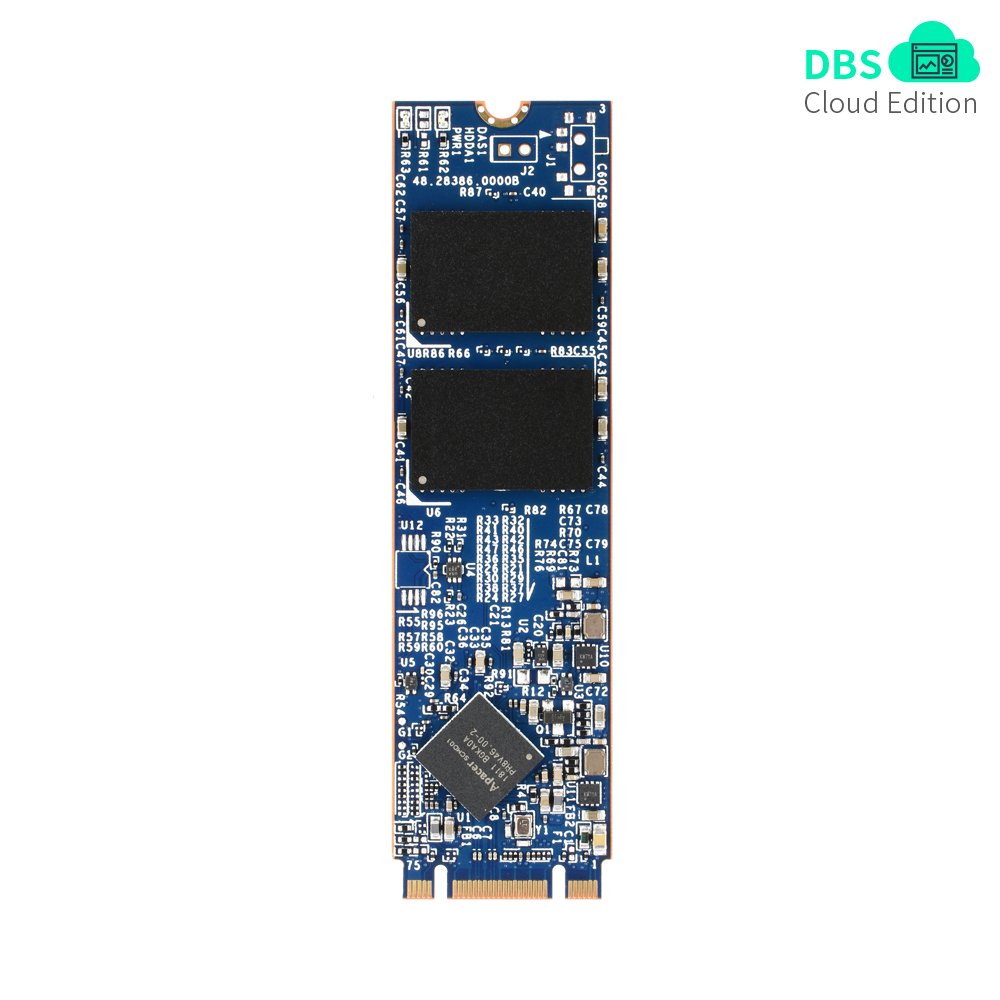

Apacer M.2 2280 SATA III SSD SV240-M280

Apacer’s SV240-M280 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.SV240-M280 utilizes 3D NAND for higher capacity up to 1920GB and provides more power efficiency than 2D NAND. Appearing in M.2 2280 mechanical dimensions, SV240-M280 is believed to be the leading add-in storage solution for future host computing systems.

Regarding reliability, SV240-M280 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, Wear Leveling, flash block management, S.M.A.R.T., TRIM and DataDefender™.

In terms of security, Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal ensures data security and provides users with a peace of mind knowing their data is safeguarded against unauthorized use at all times. Furthermore, with End-to-End Data Protection, data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers.

Model No.	SV240-M280
Interface	SATA III 6.0 Gb/s
Capacity	120GB - 1920GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 560MB/s \| SW: 495MB/s
DRAM	Yes

acon M.2 2280 SATA III SSD T/TX420

acon’s M.2 2280 SATA Solid State Disk (SSD) delivers all the advantages of flash disk technology with the Serial ATA I/II/III interface, including being fully compliant with the standard Next Generation Form Factor (NGFF) M.2 2280 form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks. The device is designed based on the M.2 2280 standard. Its capacity could provide, 240GB, 480GB, 960GB, 1920GB. Moreover, it can reach up to 550MB/s read as well as 520MB/s write high performance based on Kioxia BiCS3 TLC NAND flash.

Model No.	T/TX420
Interface	SATA III 6.0 Gb/S
Capacity	240GB - 2TB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 520MB/s
DRAM	Yes
