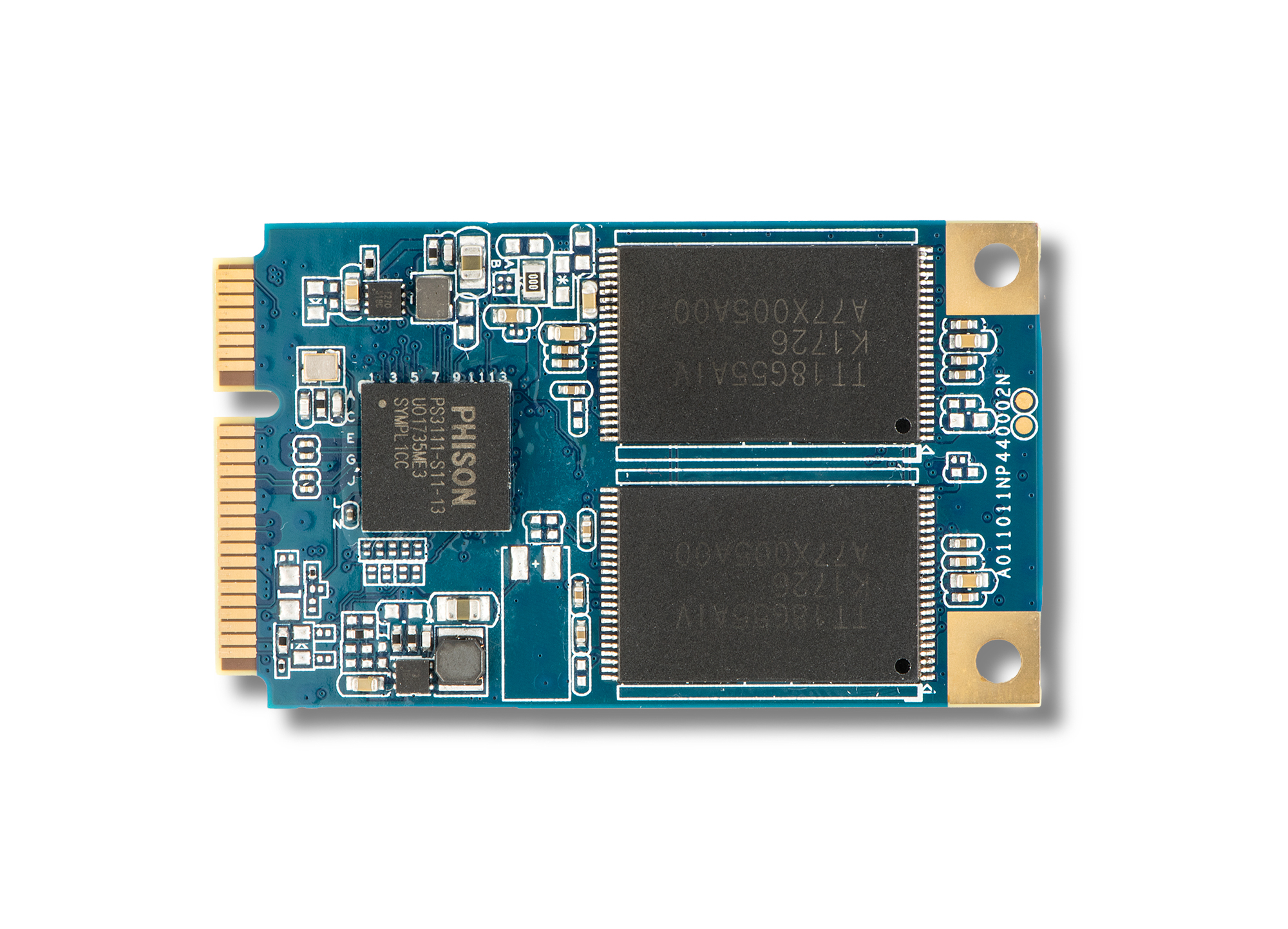

acon mSATA SATA III SSD M/MX410

acon Industrial mSATA delivers all the advantages of flash disk technology with the Serial ATA Interface and is fully compliant with the standard mSATA form factor, known as JEDEC MO-300 standard. The power consumption of the mSATA is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.	M/MX410
Interface	SATA III 6.0 Gb/s
Capacity	4GB - 64GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C bis +70°C
Extended Temperature	-40°C bis +85°C
Performance	SR: 550MB/s \| SW: 490MB/s
DRAM	No

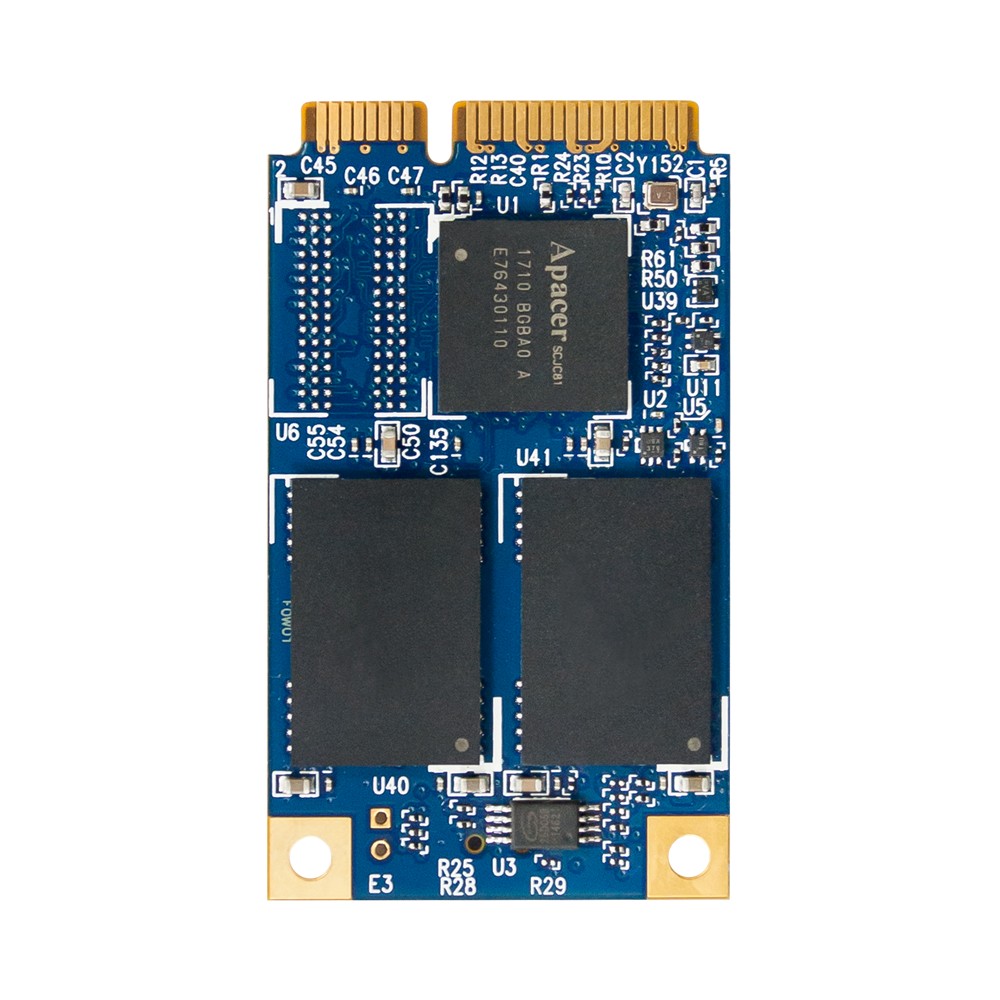

Apacer mSATA SATA III SSD SM230-300

Apacer SM230-300 is a well-balanced solid-state drive (SSD) with compact form factor (JEDEC MO-300) and great performance. With the SATA 6.0 Gbps interface, the mSATA SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading embedded or server operations with space constraints for host computing systems.
In regard of reliability, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and power failure management.
Last but not the least, with Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal support, SM230-300 ensures data security and provides users with a peace of mind knowing their data is safeguarded against unauthorized use at all times.

Model No.	SM 230-300
Interface	SATA III 6.0 Gb/s
Capacity	32GB - 512GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C bis +70°C
Extended Temperature	-40°C bis +85°C
Performance	SR: 560MB/s \| SW: 510MB/s
DRAM	No

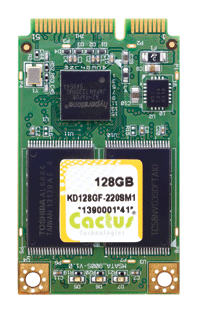

Cactus mSATA SATA III SSD Series 240S

The best mSATA SSD is one that meets the OEM's application requirements for reliability and longenvity while providing a price point which doesn't throw the project over budget. MSATA drives have a physical size of 50.8 x 29.85mm making them a great solution for small form factor designs.

Model No.	240S
Interface	SATA III 6.0 Gb/s
Capacity	8GB - 512GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C bis +70°C
Extended Temperature	-40°C bis +85°C
Performance	SR: 560MB/s \| SW: 360MB/s
DRAM	No
