Flash Profiler

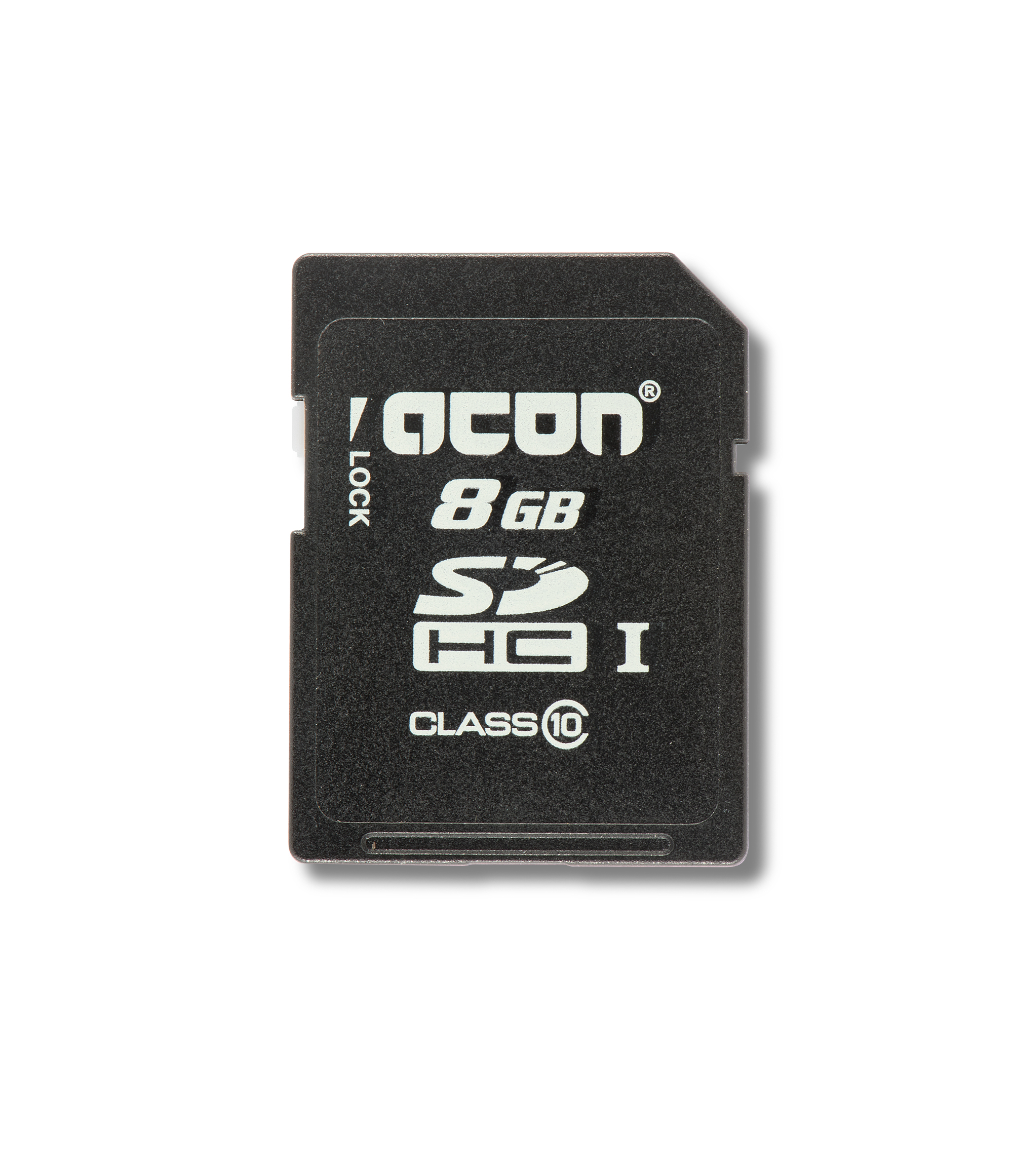

acon SD Card M/MX30

acon’s Industrial/Automotive SD 3.0 is fully compliant to the specification released by SD Card Association. The Command List supports [Part 1 Physical Layer Specification Ver3.01 Final] definitions. Card Capacity of Non-secure Area, Secure Area Supports [Part 3 Security Specification Ver3.00 Final] Specifications.
The SD 3.0 card comes with 9-pin interface, designed to operate at a maximum operating frequency of 100MHz. It can alternate communication protocol between the SD mode and SPI mode. It performs data error detection and correction with very low power consumption. Its capacity could reach 128GB with exFAT SDXC.
acon’s Industrial/Automotive SD 3.0 is one of the most popular cards today based on its high performance, good reliability and wide compatibility. Not to mention that it’s well adapted for hand-held applications in semi-industrial, medical and automotive markets already.

Model No.
M/MX30
Interface
SD 3.0
Capacity
4GB - 128GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C
Performance
SR: 95MB/s | SW: 90MB/s
DRAM
No

Apacer SD Card SD-WORM



Apacer industrial SD-WORM (Write Once Read Many) Card is a product that provides data storage protection by allowing data to be written once, preventing it from being erased, modified, or overwritten. This write protection function ensures that the data cannot be tampered with once it is written to the device.

Apacer SD-WORM Card complies with SD card version 6.1. The command list is compatible with [Part 1 Physical Layer Specification Ver6.1 Final] definitions, while the Card Capacity of Non-secure Area, Secure Area supports [Part 3 Security Specification Ver3.0 Final] Specifications. Furthermore, the SD card is compatible with SD protocol. With built-in ECC, wear-leveling and bad block management, this industrial SD card serves as an ideal portable storage solution.

Model No.
H1-M
Interface
SD 3.0
Capacity
8GB - 128GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C
Performance
SR: 75MB/s | SW: 65MB/s

Cactus SD Card Series 240

The Cactus Commercial Grade MLC SD cards have life cycles in the 18-24 month range. For longer life cycle OEM system requirements, Cactus can review the application with the OEM and possibly extend this life cycle range. These MLC SD Cards have Locked BOM (Bill-Of-Material) signifying there will be no changes to controller silicon, NAND silicon or firmware without notification.

Model No.
KS4GR-240
Interface
SD 3.0
Capacity
4GB - 128GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C

Performance
SR: 80MB/s | SW: 45

DRAM
No
