mSATA

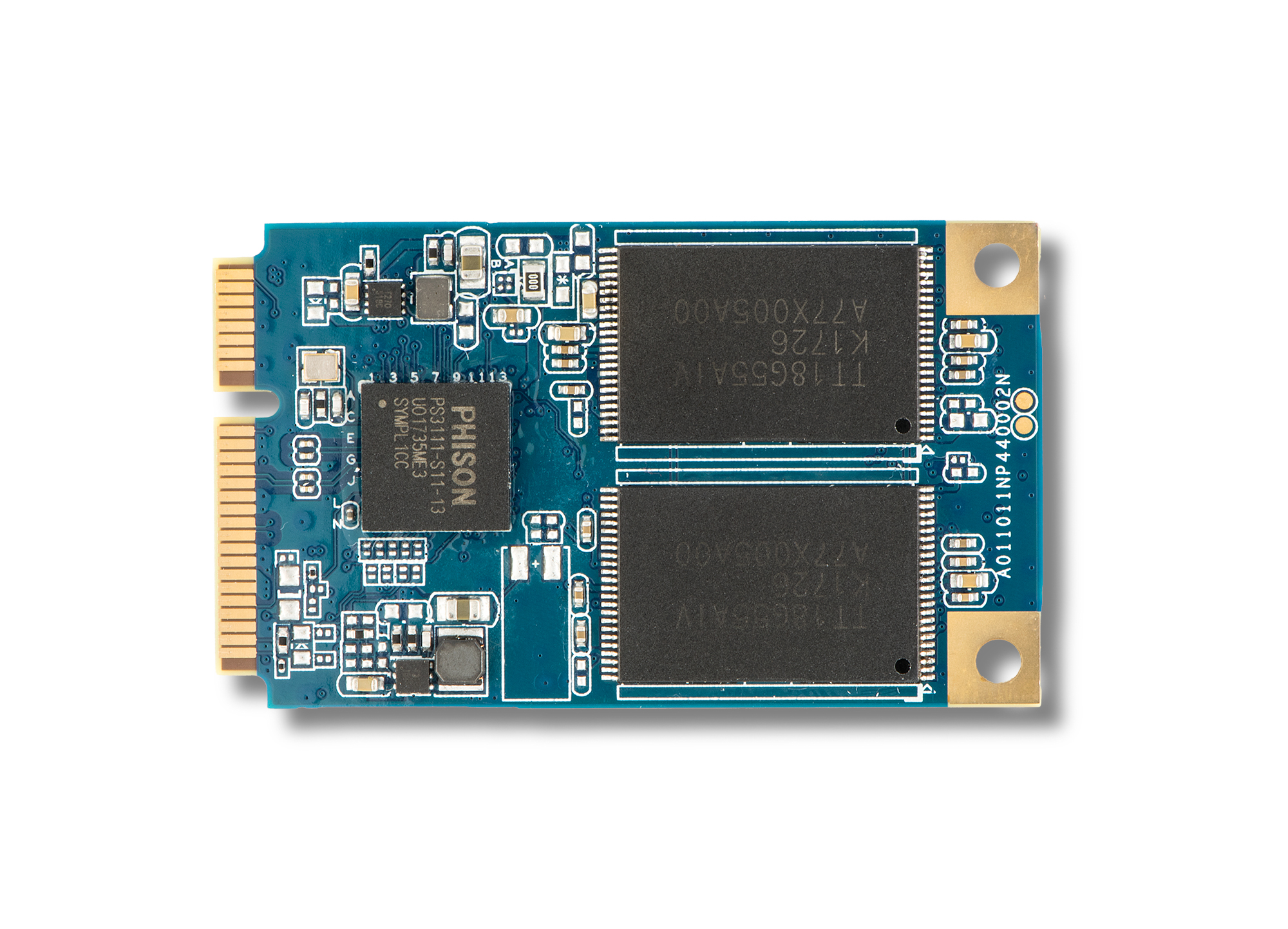

acon mSATA SATA III SSD L/LX430

acon’s mSATA delivers all the advantages of flash disk technology with the Serial ATA I/II/III interface and is fully compliant with the standard mSATA form factor, known as JEDEC MO-300 standard.
The module is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 512GB. Moreover, it can reach up to 550MB/s read as well as 500MB/s write high performance based on Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0). Meanwhile, the power consumption of the mSATA module is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.	L/LX430
Interface	SATA III 6.0 Gb/s
Capacity	16GB - 512GB
Flash Type	3D pSLC
Endurance	30.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	40°C - +85°C
Performance	SR: 550MB/s \| SW: 495MB/s
DRAM	No

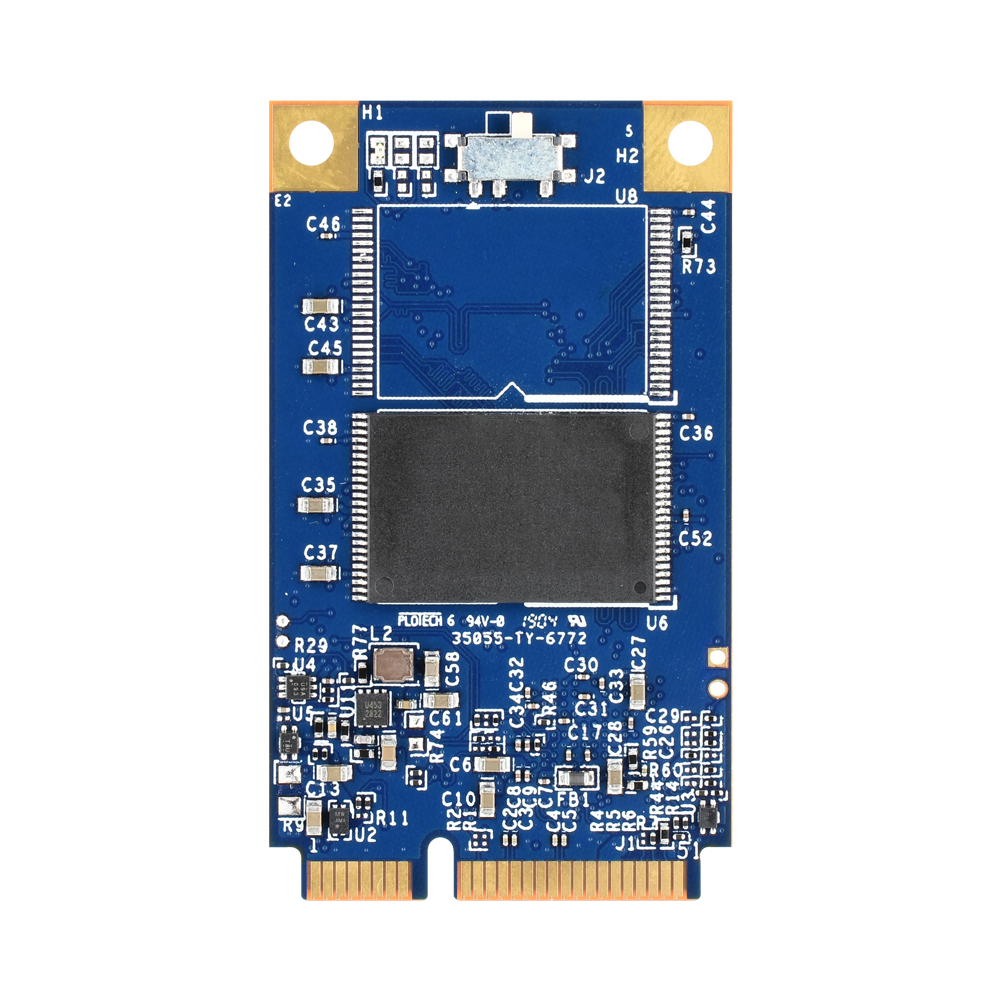

Apacer mSATA SATA III SSD SH250-300

Apacer’s SH250-300 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

SH250-300 utilizes 3D NAND for higher capacity up to 160GB and provides more power efficiency than 2D NAND. Appearing in SH250-300 mechanical dimensions, SH250-300 is believed to be the leading add-in storage solution for future host computing systems. Regarding reliability, SH250-300 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. With Apacer’s SLC-liteX technology, SH250-300 performs with higher number of P/E cycles up to 100,000 times. Since it is operating under SATA 6.0 Gbps interface, SH250-300 is provided with Apacer latest S.M.A.R.T. that is primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analysis. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, TRIM and DataDefender™.

Model No.	SH250-300
Interface	SATA III 6.0 Gb/s
Capacity	40GB - 640GB
Flash Type	3D pSLC
Endurance	100.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 500MB/s \| SW: 485MB/s
DRAM	No
