M.2 2242

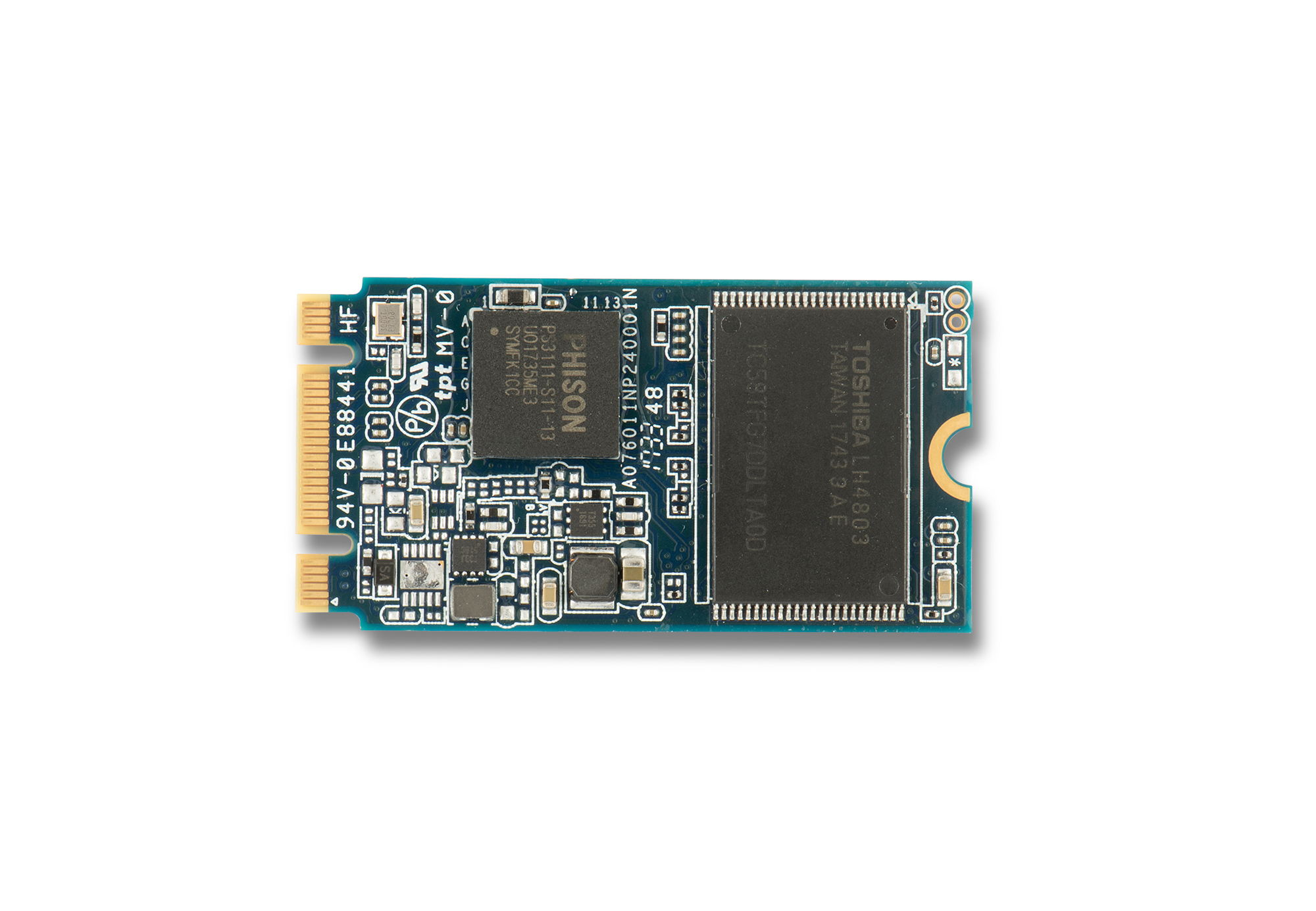

acon M.2 2242 PCIe SSD T/TX200

acon ADP42IACxxxx070 M.2 2242 delivers all the advantages of flash disk technology with PCIe Gen3 x2 interface and is fully compliant with the standard Next Generation Form Factor (NGFF) called M.2 Card Format. ADP42IACxxxx070 M.2 2242 offers a wide range of capacities up to 512GB and its performance can reach up to 1600 MB/s1 (for read) and 1000 MB/s1 (for write) based on Toshiba BiCS3 TLC NAND flash with the choice of 256MB/512MB/1GB DDR3L2. Moreover, the power consumption of PS5008 M.2 2242 is much lower than traditional hard drives, making it the best embedded solution for new platforms

Model No.	T/TX200
Interface	PCIe Gen. 3x2
Capacity	128GB - 512GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	--
Performance	SR: 1.600MB/s \| SW: 1.000MB/s
DRAM	Yes

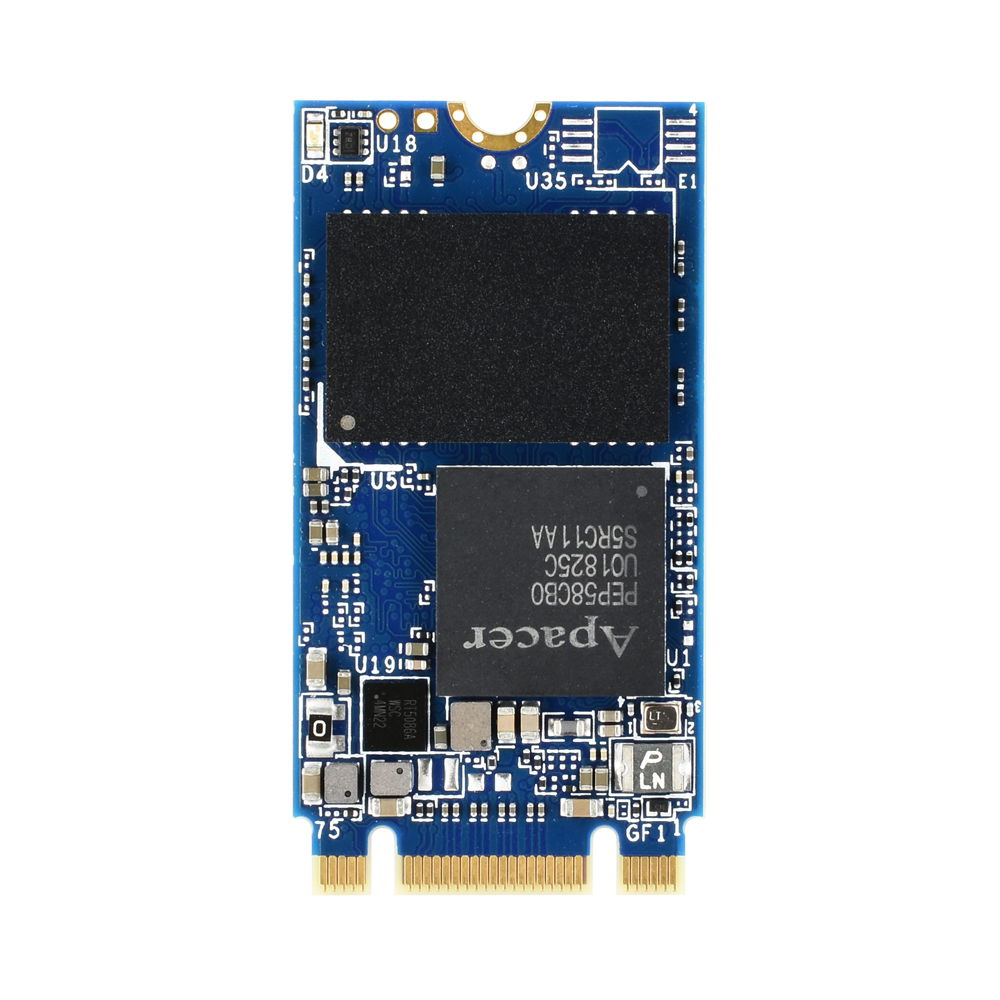

Apacer M.2 2242 PCIe SSD PV130-M242

Apacer PV130-M242 (M.2 2242) is the next generation modularized Solid State Drive (SSD) with the shape of all new M.2 form factor, aimed to be the more suitable for mobile and compact computers with standard width at only 22.00 mm. PV130-M242 appears in M.2 2242 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems.
The M.2 SSD is designed with PCIe-based connector pinouts, providing full compliance with the latest PCIe Gen3 x2 interface specifications. Aside from PCIe compliance, PV130-M242 delivers exceptional performance and power efficiency. On the other hand, the extreme thin and light form factor makes PV130-M242 the ideal choice for mobile computing systems, which appears to be the trend in near future.

Model No.	PV130-M242
Interface	PCIe Gen. 3x2
Capacity	60GB - 480GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 1.590MB/s \| SW: 1.030MB/s
DRAM	No
