M.2 2242

acon M.2 2242 SATA III SSD M/MX410

acon Industrial M.2 2242 SSD is a new SSD module designed for embedded systems applied for industrial platforms. acon industrial 2242 SSD offers a universal temperature range for operation, 0°C - 70°C and -40°C - 85°C and a capacity up to 512GB.

Model No.	M/MX410
Interface	SATA III 6.0 Gb/s
Capacity	4GB - 64GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 560MB/s \| SW: 490MB/s
DRAM	No

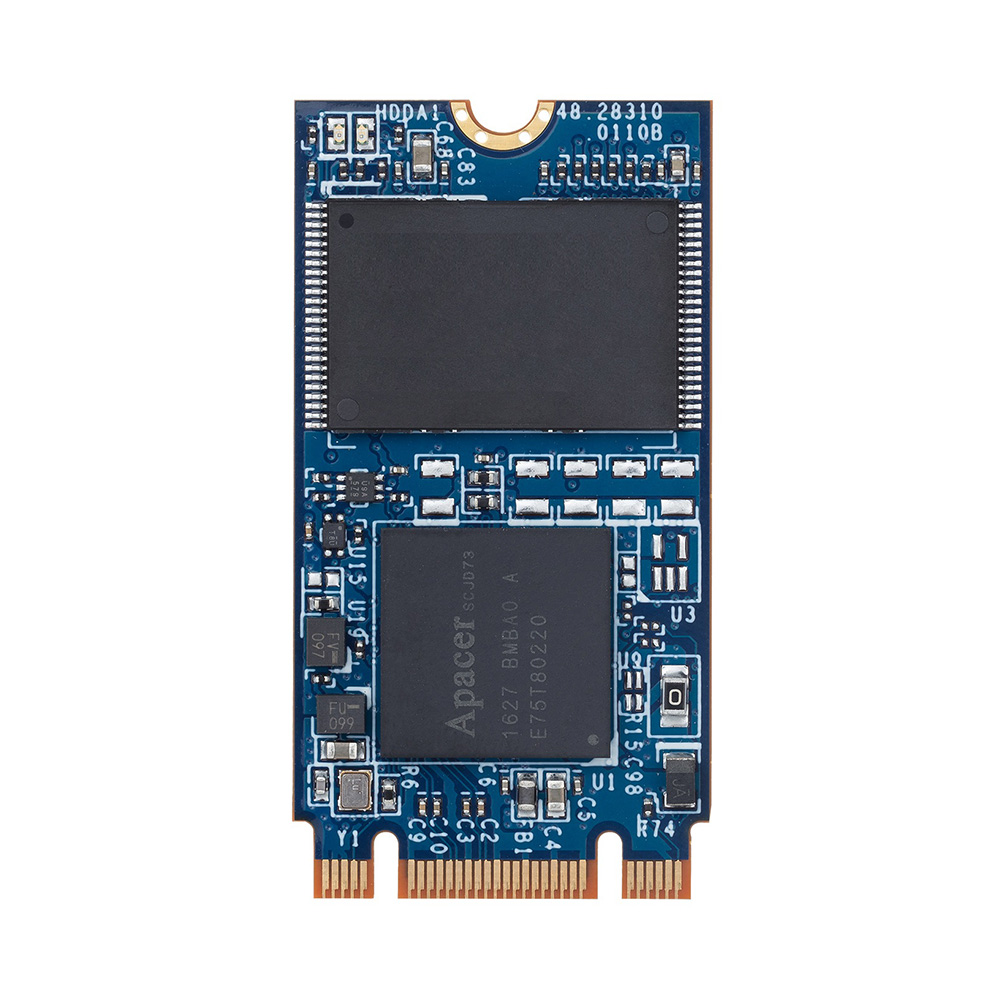

Apacer M.2 2242 SATA III SSD SM230-M242

Apacer’s SM230-M242 (M.2 2242) is the next generation modularized Solid State Drive (SSD) with the shape of all new M.2 form factor, with the aim of becoming more suitable for mobile and compact computers with standard width at only 22.00 mm. SM230-M242 appears in M.2 2242 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems.
The M.2 SSD is designed with SATA-based connector pinouts, providing full compliance with the latest SATA Revision 3.1 interface specifications. Aside from SATA compliance, SM230-M242 delivers exceptional performance and power efficiency. On the other hand, the extreme thin and light form factor makes SM230-M242 the ideal choice for mobile computing systems, which appears to be the trend in the near future.
Regarding reliability, SM230-M242 is built with a powerful SATA controller that supports on-the-module ECC as well as efficient wear leveling scheme. Operating under SATA 6.0 Gbps interface, SM230-M242 is provided with Apacer latest S.M.A.R.T. that is primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analyzing. Furthermore, with Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal support, SM230-M242 ensures data security and provides users with a peace of mind knowing their data is safeguarded against unauthorized use at all times.

Model No.	SM230-M242
Interface	SATA III 6.0 Gb/s
Capacity	8GB - 256GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 555MB/s \| SW: 470MB/s
DRAM	No

Cactus M.2 2242 SATA III SSD Series 240

The Cactus Technologies 240S Series Commercial Grade M.2 (also known as NGFF – Next Generation Form Factor), 2242 (22mm x 42mm) form factor is available in capacities up to 256 Gbytes, is a solid-state flash memory product that adheres to the SATA-IO group’s specifications. Based on MLC NAND, it is intended for OEM applications needing a cost effective part with high performance SATA interface.
The 240S Series M.2 2242 comes with full BOM Control and is built with Stringent Quality Processes. Cactus Technologies incorporates World Class ECC, Wear Leveling and Defect Management into the 240S Series M.2, making it the most reliable MLC based M.2 on the market. Custom Labeling, Custom ID and Preloaded Content are available based on customer requirement

Model No.	KD256GR-240SM5
Interface	SATA III 6.0 Gb/s
Capacity	8GB - 256GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 540MB/s \| SW: 450MB/s
DRAM	No
