CF CARDS

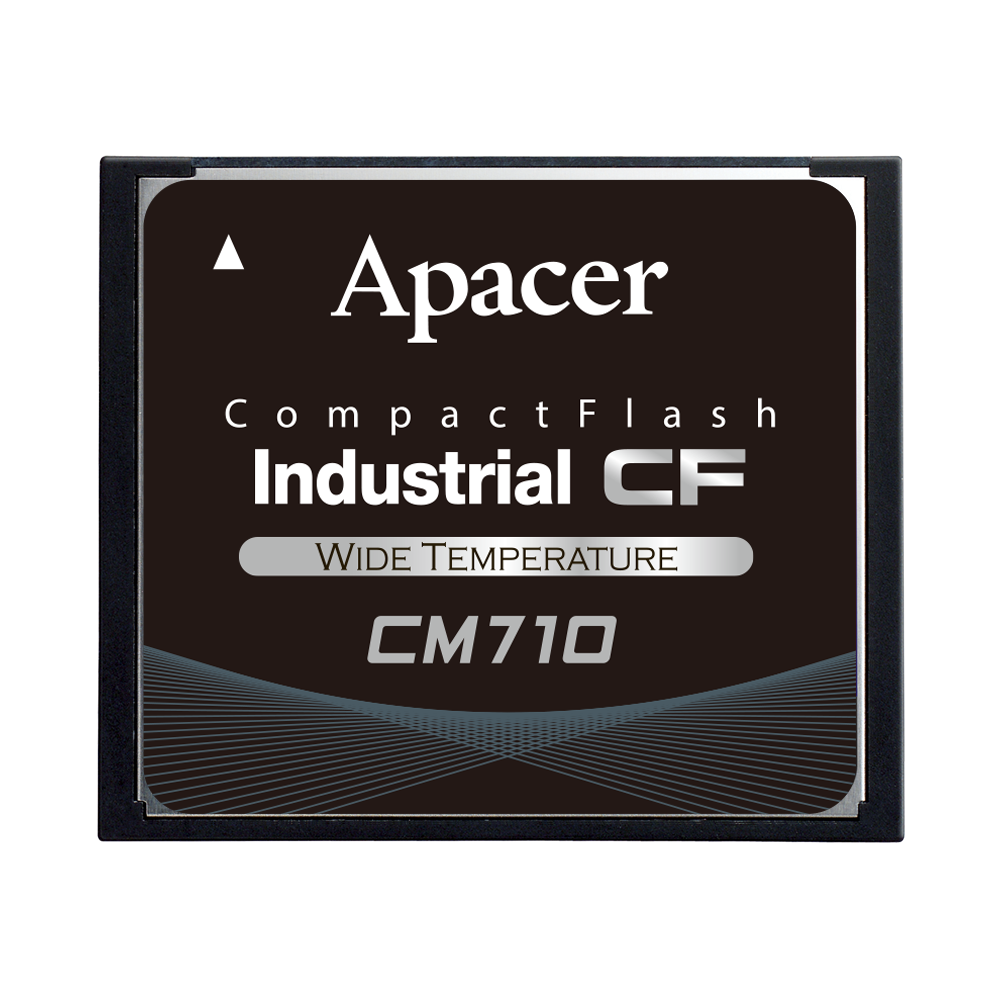

Apacer CF Card CM710-CF

Apacer industrial CM710-CF card is compliant with the CF 6.1 standard compatible specifications.
Apacer adopts the standard 50-pin connector and MLC chip with higher capacity for the card. It is available in capacities from 8GB to 128GB. The data transfer mode is up to PIO Mode 6, Multiword DMA Mode 4, Ultra DMA Mode 6, with the sequential read/write speed reaching as fast as 95/55 MB/sec.
To help data stay correct, this CM710-CF memory card also supports 96-bit ECC function, wear-leveling function,S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) and supply voltage power-down detection for full power-down robustness,thereby substantially enhancing product reliability.

Model No.	CM710-CF
Interface	PATA
Capacity	8GB - 128GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 95MB/s \| SW: 55MB/s
DRAM	No

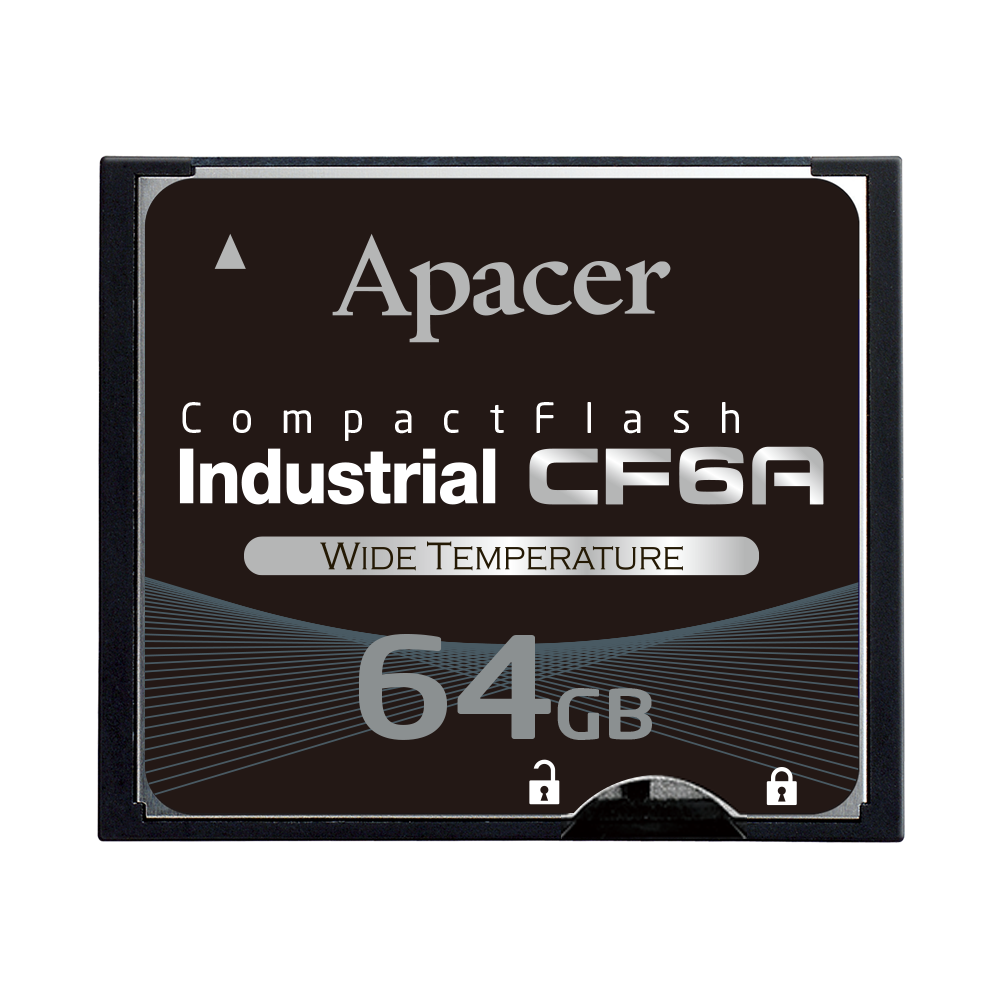

Apacer CF Card CF6A-M

Apacer industrial CF6A-M card is compliant with the CFA 6.0 specifications. Apacer adopts the standard 50-pin connector and MLC chip lower cost and higher capacity for the card. It is available in capacities from 8GB to 64GB. The data transfer mode is up to PIO Mode 6 , Multiword DMA Mode 4 ,Ultra DMA Mode 7 , PCMCIA UDMA Mode 7, with the sequential read/write speed reaching as fast as 115/75 MB/sec. To help data stay correct, this CF6A-M memory card also supports 72-bit ECC function, wear-leveling function and S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology), thereby substantially enhancing product reliability.

Model No.	CF6A-M
Interface	PATA
Capacity	8GB - 64GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 115MB/s \| SW: 75MB/s
DRAM	No

Cactus CF Card Series 240

The Cactus Technologies 240 Series Commercial Grade Compact Flash Memory Card is a 15nm MLC NAND based solid-state flash memory device that complies with the CompactFlash Association ATA standard in the CF Type I form factor. It is available in capacities from 4GBytes to 128GBytes and intended for OEM applications needing a cost effective part with very good performance.
The 240 Series Compact Flash comes with full BOM Control and is built with Stringent Quality Processes. Cactus Technologies incorporates World Class ECC, Wear Leveling and Defect Management into the 240 Series CF, making it a very reliable MLC based Compact Flash.

Model No.	KC128GF-240
Interface	PATA
Capacity	4GB - 128GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 80MB/s \| SW: 65MB/s
DRAM	No
