USB DoM

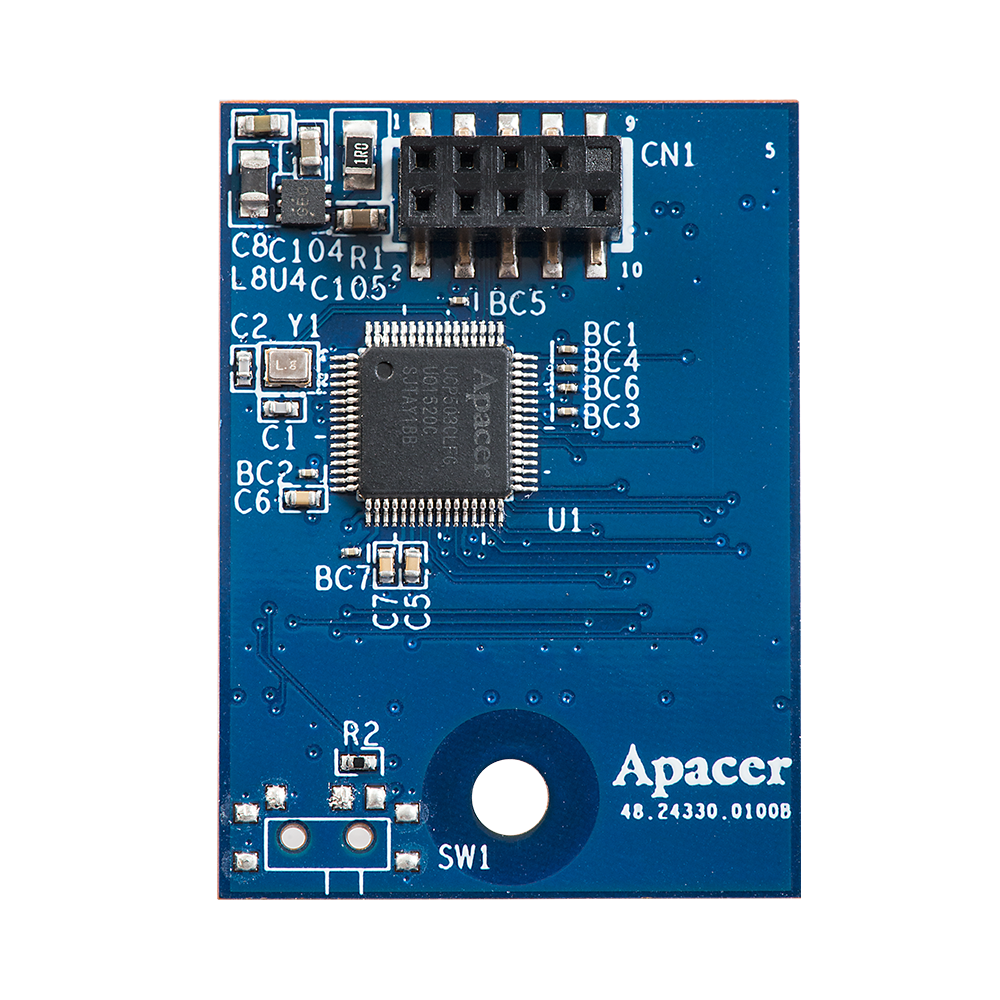

Apacer USB DoM UDM2A-M

Apacer’s UDM2A-M LP 90D (Type E) is a high performance, highly reliable, high endurance USB2.0 flash disk module in a small form factor designed for embedded applications and the system as a boot drive. As a embedded flash storage, it's compliant with USB2.0 and backward compliable with USB1.1, and connects to the host system via a 10-pin connector. The 10-pin USB connector on the Type E with pitch size 2.00 mm could perfectly fit in low profile system .

Model No.	UDM2A-M
Interface	USB 2.0
Capacity	8GB - 128GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 44MB/s \| SW: 43MB/s
DRAM	No

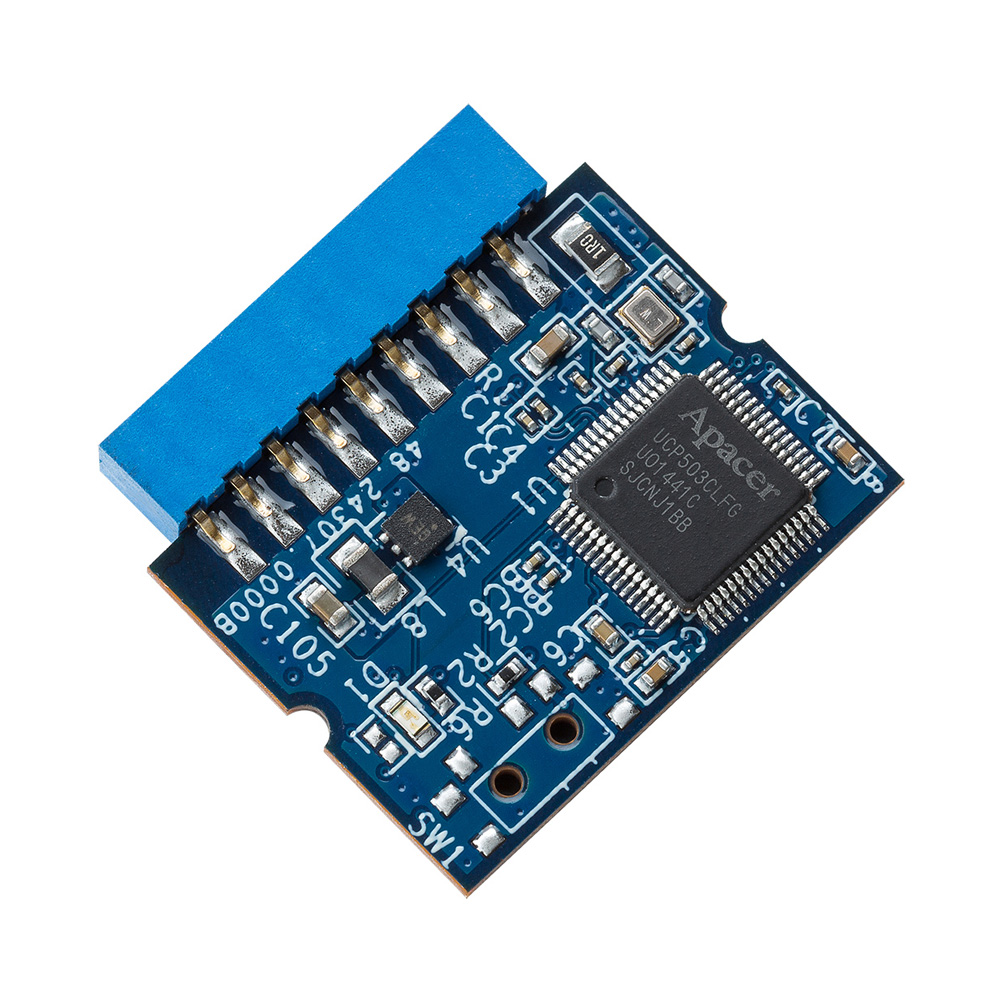

Apacer USB DoM UDM1U-M

UDM 1U-M is small form factor that electrically complies with High-speed USB 3.0 interface. Tailored for the 1U server, the new series boasts upgraded speeds and a doubling of capacity. The minimum height is only 22.4mm, enhancing the air ventilation inside the 1U chassis.
The actual available memory on the device is less than what is listed on the package. This is due to small discrepancies in file formats and algorithms used by various operating systems. In addition, a portion of memory space is reserved for system files and data sectors for better performance.

Model No.	UDM1U-M
Interface	USB 3.0
Capacity	8GB - 32GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 90MB/s \| SW: 48MB/s
DRAM	No
