CFAST

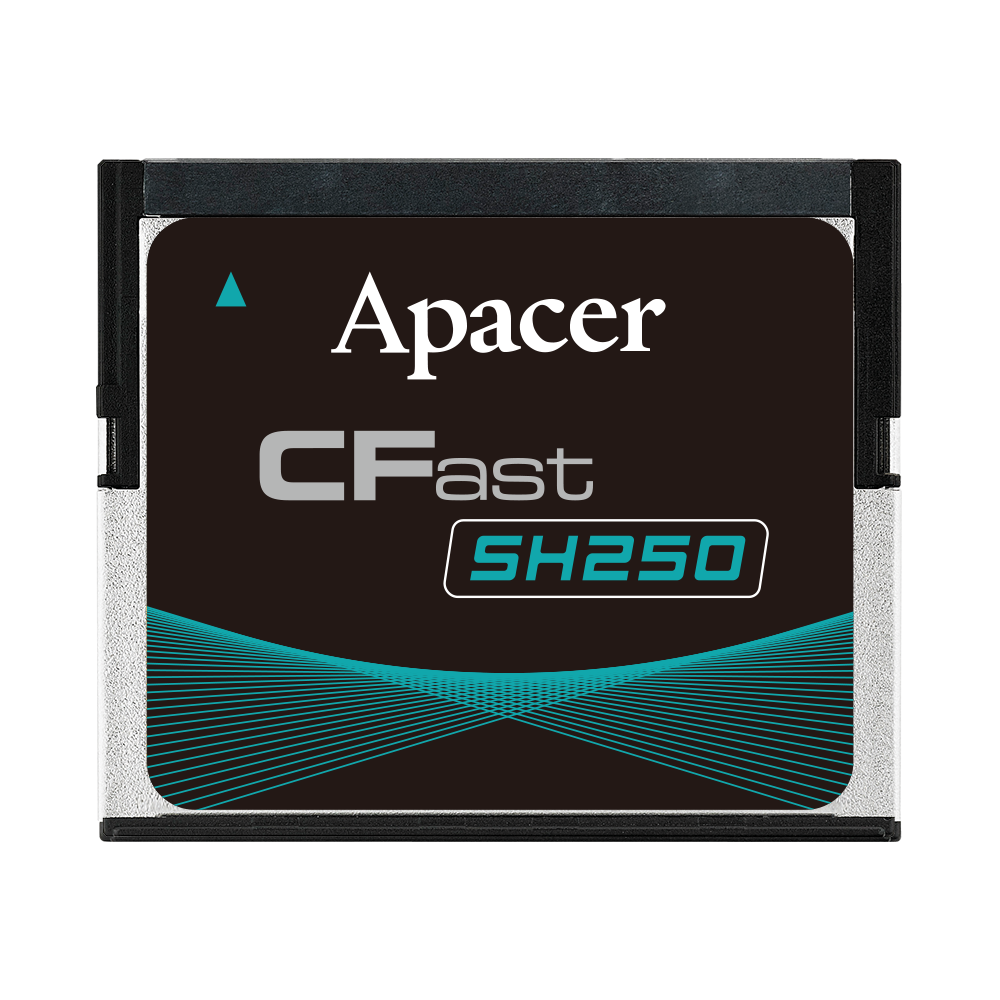

Apacer CFAST Card SATA III SH250

Apacer SH250-CFast, utilizing 3D NAND for higher capacity up to 320GB and providing more power efficiency than 2D NAND, is the latest enhancement of conventional CFast form factor that delivers various technological advantages. This new flash memory card comes with SATA 6 Gb/s interface for exceptional performance with data transfer rates up to 550 MB/s in sequential access and 63,000 IOPS in 4KB random access, and consists of SATA-based 7-pin signal segment and 17-pin for power and control purposes. Designed without DRAM on the internal controlling unit, SH250-CFast ensures data integrity by preventing data loss during a sudden power outage.

SH250-CFast guarantees reliability of applications in harsh environments by implementing intelligent Flash Management algorithms and LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. With Apacer’s SLC-liteX technology, SH250-M242 performs with higher number of P/E cycles up to 100,000 times. Furthermore, SH250-CFast is equipped with a built-in thermal sensor to monitor the temperature of the SSD via S.M.A.R.T commands to prevent overheating. Operating under 6 Gb/s interface, SH250-CFast is provided with Apacer latest S.M.A.R.T. that is primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analysis. For highly-intensive applications, End-to-End Data Protection ensures that data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers.

Security-wise, Advanced Encryption Standard (AES) ensures data security and provides users with peace of mind knowing their data is safeguarded at all times. SH250-CFast also adopts the latest page mapping file translation layer and comes with various implementations including power saving modes, wear leveling, flash block management, TRIM, DataDefenderTM and SMART Read RefreshTM. With exceptional performance, trustable reliability and enhanced data protection, SH250-CFast is definitely the ideal storage or cache solution for a variety of applications ranging from industrial, imaging, computing to enterprise markets.

Model No.	SH250
Interface	SATA III 6.0 Gb/s
Capacity	40GB - 320GB
Flash Type	3D pSLC
Endurance	100.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 485MB/s
DRAM	No

acon CFAST Card SATA III L/LX430

acon CFast delivers all the advantages of Flash Disk technology with the Serial ATA II I interface and is fully compliant with the standard CFast form factor. Given the features of the low power consumption, small form factor, and high shock resistance, CFast is an attractive solution to replace the conventional [PATA interfaced] CompactFlash card in industrial applications or markets where performance is a major concern. CFast, consisting of a SATA based 7 pin standard interface for data segment and 17 pin for power and controller segment, is designed to operate at a maximum operating frequency of 200 MHz with 30 MHz external crystal .

Model No.	L/LX430
Interface	SATA III 6.0 Gb/s
Capacity	16GB - 256GB
Flash Type	3D pSLC
Endurance	30.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 480MB/s
DRAM	No
