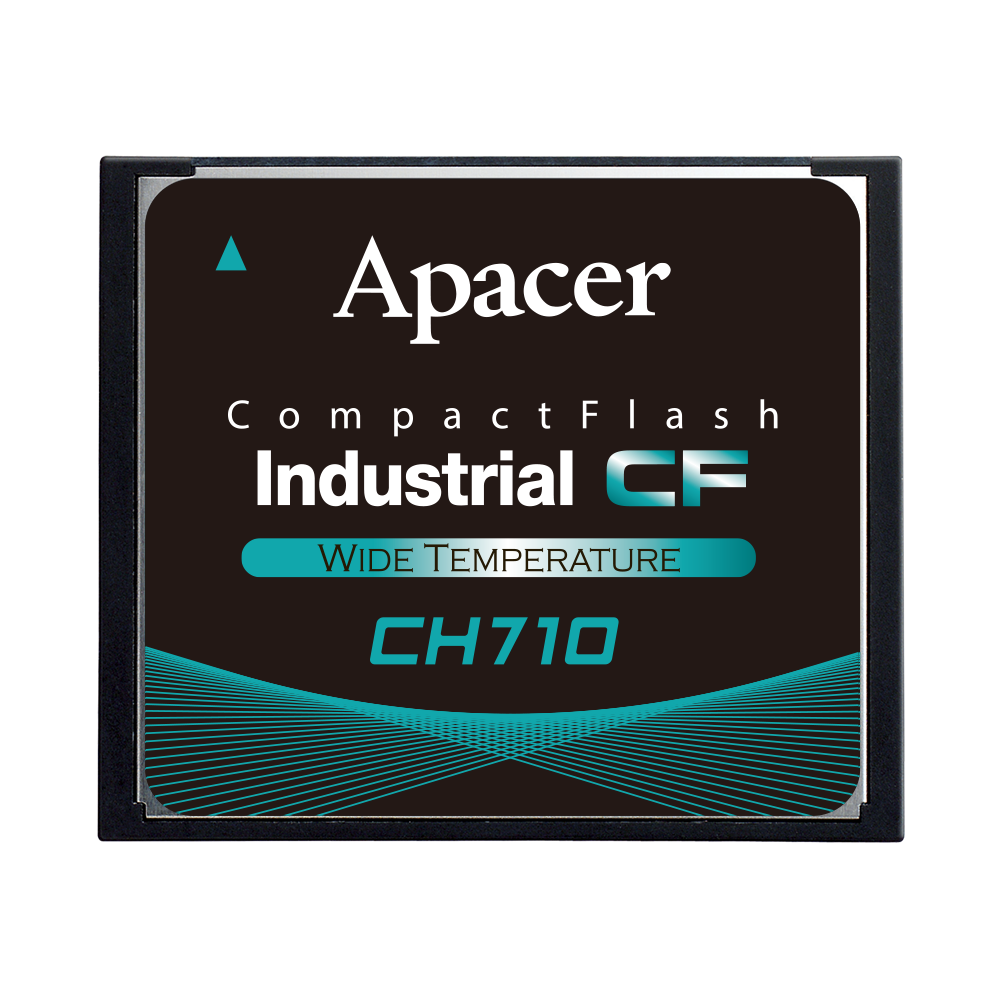

Apacer CF Card CH710-CF

Apacer industrial CH710-CF card is compliant with the CF 6.1 standard compatible specifications. Apacer adopts the standard 50-pin connector and MLC chip with higher capacity for the card. It is available in capacities from 8GB to 64GB. The data transfer mode is up to PIO Mode 6, Multiword DMA Mode 4, Ultra DMA Mode 6, with the sequential read/write speed reaching as fast as 115/80 MB/sec. To help data stay correct, this CH710-CF memory card also supports 96-bit ECC function, wear-leveling function, S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) and Supply voltage power-down detection for full power-down robustness, thereby substantially enhancing product reliability.

Model No.
CH710-CF
Interface
PATA
Capacity
8GB - 64GB
Flash Type
3D pSLC
Endurance
30.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 115MB/s | SW: 80MB/s
DRAM
No
