acon M.2 2280 PCIe SSD T/TX230

acon’s M.2 2280 delivers all the advantages of flash disk technology with PCIe Gen3 x4
interface and is fully compliant with the standard Next Generation Form Factor (NGFF) called
M.2. acon’s M.2 2280 offers a wide range capacity up to 1920GB and its performance can reach up to 3000 MB/s (for read) and 1000 MB/s (for write) based on Kioxia BiCS5 TLC NAND.

Model No.	T/TX220
Interface	PCIe Gen. 3x4
Capacity	128GB - 2TB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 3.000MB/s \| SW: 1.000MB/s
DRAM	No

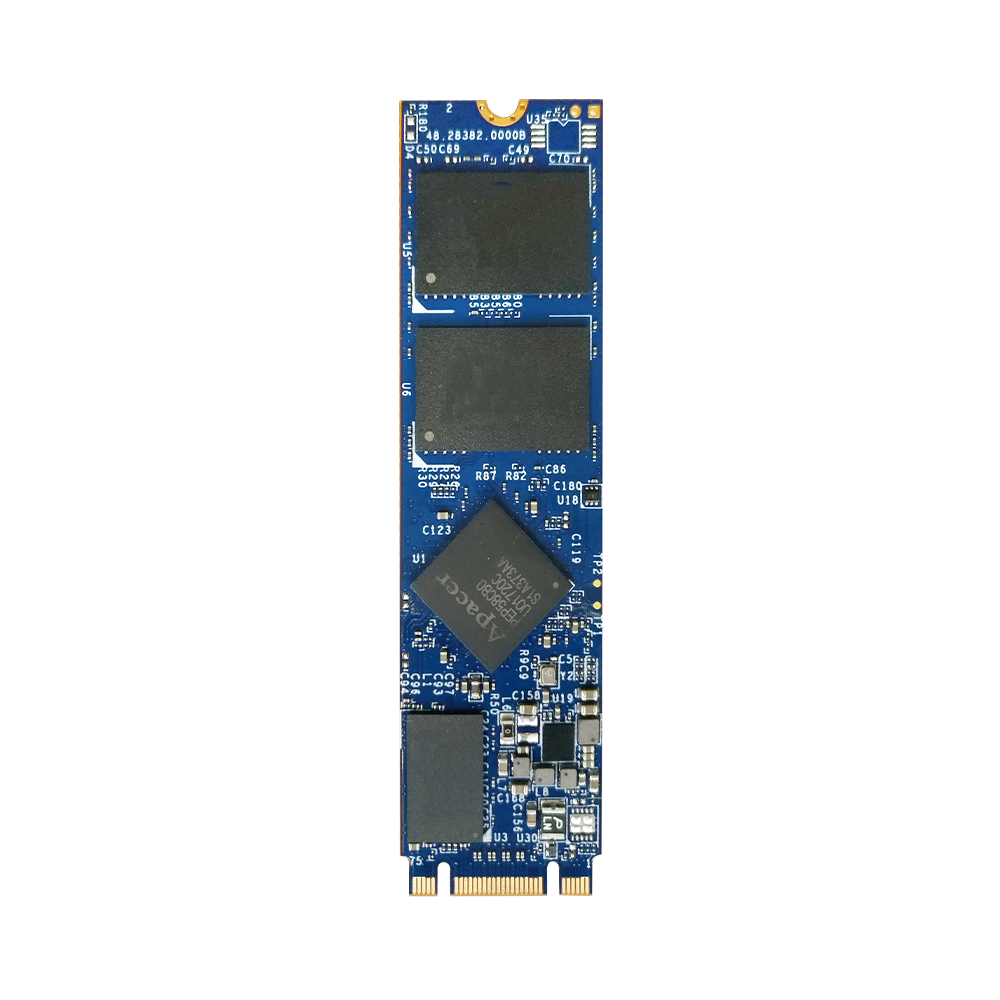

Apacer M.2 2280 PCIe SSD PV930-M280

Apacer PV930-M280 is the fastest SSD designed to M.2 2280 mechanical dimensions, providing full compliance with PCIe Gen4 x4 interface and NVMe 1.4 specifications.

Built with a powerful PCIe controller, PV930-M280 delivers outstanding performance in data transfer, reaching up to 1,062,000/914,000 and 7,130/6,105 MB/s in IOPS and sequential read/write. The extreme thin and light form factor makes PV930-M280 the ideal choice for mobile computing systems, which appears to be the trend in the near future.

Regarding reliability, PV930-M280 supports on-the-module ECC as well as an efficient Wear Leveling scheme. Furthermore, End-to-End Data Protection guarantees data integrity at multiple points in the path to enable reliable delivery of data transfers. Security-wise, Advanced Encryption Standard (AES) ensures data security and provides users with a peace of mind knowing their data is safeguarded. PV930-M280 is compliant with the PCIe Gen4 x4 interface standard so that it can operate in power management modes, which greatly saves on power consumption.

Model No.	PV930-M280
Interface	PCIe Gen. 4x4
Capacity	480GB - 1920GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 7130MB/s \| SW: 6105 MB/s
DRAM	Yes

Cactus M.2 2280 PCIe SSD Series 270

The Cactus Technologies 270P Series Commercial Grade M.2 (also known as NGFF – Next Generation Form Factor) in the 2280 form factor (22mm x 80mm) is available in capacities from 128GB to 1TB. It is a solid-state flash memory product with native NVMe interface in a PCI Express Gen3 x4 configuration that is compliant with PCI Express base specifications, ver.3.1 and NVMExpress specifications, ver.1.3.Based on the highest quality and reliability 3D TLC NAND, it is intended for OEM and Industrial systems requiring high reliability over many years of usage in the field. All parts are conformal coated to avoid contamination from the environment and have a heat spreader for thermal management. It uses LDPC error correction with an End-to-End datapath protection. It supports NVMe defined SMART attributes and 16 I/O queues w/ max. queue depth of 32 each.

Model No.	KD512GF-270PM7
Interface	PCIe Gen. 3x4
Capacity	128GB - 1TB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	--
Performance	SR: 1.600MB/s \| SW: 1.400MB/s
DRAM	Yes
