SATA DoM

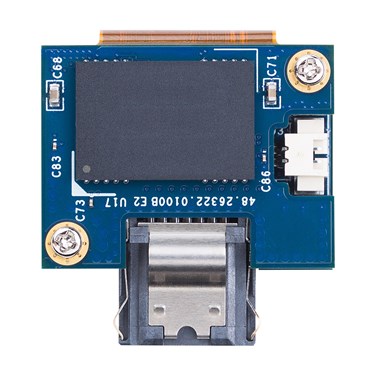

Apacer SATA DoM SATA III SDM7-M7P/180D DP

Apacer SDM7-M 7P/180D DP (SATA Disk Module 7 7Pin/180 Degree DP) is a super-mini Industrial SSD module that is made with rigid and flex boards having a hinged design that allows the boards to stack for better flexibility and shock absorption. The result achieves a boosted memory capacity of 256GB at four-channel speed, up to 525MB/s read and 350MB/s write. Besides, SDM7-M DP features Apacer Multi-PowerPath options giving the possibilities to power the host either via a conventional cable or cable-less design via pin7 or state-of-art 7+2 pin connector, which in turn provides developers maximum flexibility when it comes to board design. Moreover, the device adopts the latest page mapping file translation layer, thermal throttling and write protect function making it a powerful yet compact solution for space-limited design. Last but not the least, SDM7-M DP can be delivered with Apacer CoreAnalyzer analysis software on request making it possible to quantify the actual workload on application which is critical in evaluating life cycle of host applications.

Model No.	SDM7-M7P/180D DP
Interface	SATA III 6.0Gb/s
Capacity	32GB - 256GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 525MB/s \| SW: 325MB/s
DRAM	Yes

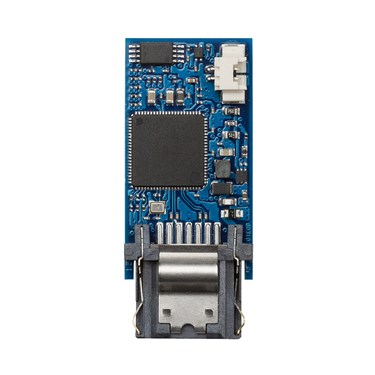

Apacer SATA DoM SATA III SDM5A-M

Apacer’s SDM5A-M (SATA Disk Module 5A - M) offers elevated speed boost and higher error correction capabilities. Built with SATA 6 Gb/s interface, SDM5A-M delivers exceptional performance in data transfer.
With its SATA interface compliance and compact size, this high-speed disk module defines an ideal balance of performance, capacities, reliability and cost. SDM5A-M comes in moderate capacities that are suitable to boot industrial applications and light operating systems for specific operations, while with some extra memory space for data storage. The architectural nature of SATA disk module provides higher resistance to external environmental influences and better flexibility for motherboard space.
Regarding data reliability, SDM5A-M is built in with powerful ECC engine that can correct up to 40-bit per 1KB data. In addition, the controller unit of this DOM device supports wear-leveling, SMART and power failure management for data integrity. Wit its trustable reliability, performance and cost effectiveness, Apacer’s SDM5A-M is definitely the ideal storage or cache solution for embedded and industrial computers, servers and thin clients.

Model No.	SDM5A-M
Interface	SATA III 6.0 Gb/s
Capacity	4GB - 32GB
Flash Type	MLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 120MB/s \| SW: 40MB/s
DRAM	No
