mSATA

acon mSATA SATA III SSD T/TX430

acon’s mSATA delivers all the advantages of flash disk technology with the Serial ATA I/II/III interface and is fully compliant with the standard mSATA form factor, known as JEDEC MO-300 standard.
The module is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 1TB. Moreover, it can reach up to 550MB/s read as well as 500MB/s write high performance based on Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0). Meanwhile, the power consumption of the mSATA module is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.	T/TX430
Interface	SATA III 6.0 Gb/s
Capacity	64GB - 2TB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 500MB/s
DRAM	No

Apacer mSATA SATA III SSD SV240-300

Apacer’s SV240-300 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

SV240-300 utilizes 3D NAND for higher capacity up to 960GB and provides more power efficiency than 2D NAND. Regarding reliability, SV240-300 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and DataDefender™.

In terms of security, Advanced Encryption Standard (AES) ensures data security and provide users with a peace of mind. Furthermore, with End-to-End Data Protection, data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers.

Model No.	SV240-300
Interface	SATA III 6.0 Gb/s
Capacity	120GB - 1920GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 560MB/s \| SW: 495MB/s
DRAM	Yes
	No

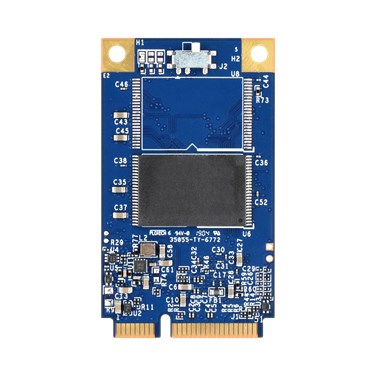

Apacer mSATA SATA III SSD SV250-300

Apacer’s SV250-300 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

SV250-300 utilizes 3D NAND for higher capacity up to 480GB and provides more power efficiency than 2D NAND. SV250-300 is believed to be the leading add-in storage solution for future host computing systems. Regarding reliability, SV250-300 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM and DataDefender™.

Model No.	SV250-300
Interface	SATA III 6.0 Gb/s
Capacity	120GB - 1920GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 560MB/s \| SW: 470MB/s
DRAM	No
