2,5" SSD

acon 2,5" SATA III SSD L/LX430

acon 2.5” SATA Solid State Disk (SSD) delivers all the advantages of flash disk technology with Serial ATA III interface, including being fully compliant with standard 2.5-inch form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks. The 2.5” SATA SSD is designed to operate at a maximum
operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to
512 GB. Moreover, it can reach up to 5 50 MB/s read as well as 495 MB/s write high performance based on
3D TLC flash.

Model No.	L/LX430
Interface	SATA III 6Gb/s
Capacity	16GB~512GB
Flash Type	3D pSLC
Endurance	30.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 550MB/s \| SW: 495MB/s
DRAM	No

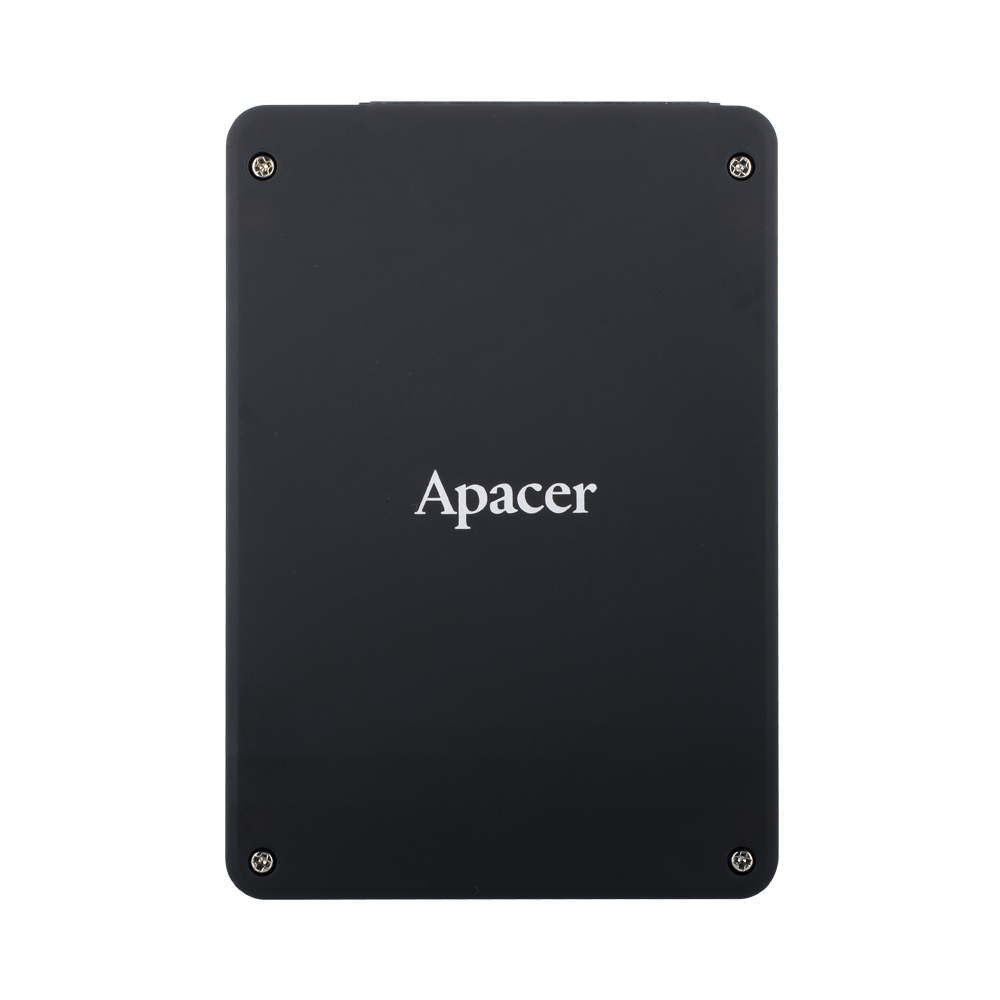

Apacer 2,5" SATA III SSD SH250-25

Apacer’s SH250-25 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

SH250-25 utilizes 3D NAND for higher capacity up to 320GB and provides more power efficiency than 2D NAND. With Apacer’s SLC-liteX technology, SH250-25 performs with higher number of P/E cycles up to 30,000 times. Regarding reliability, SH250-25 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM and DataDefender™.

Model No.	SH250-25
Interface	SATA III 6Gb/s
Capacity	40GB~640GB
Flash Type	3D pSLC
Endurance	100.000 P/E Cycles
Standard Temperature	0°C - +70°C
Extended Temperature	-40°C - +85°C
Performance	SR: 560MB/s \| SW: 520MB/s
DRAM	No
